MARTIN GUARDABELT Medium-Duty Impact Cradle with 4 ft. Bar - Belt Conveyor Stability Solution
MARTIN GUARDABELT Medium-Duty Impact Cradle with 4 ft. Bar - Belt Conveyor Stability Solution
SKU:BEL-d2ccd6
Ensure belt conveyor stability with MARTIN GUARDABELT Medium-Duty Impact Cradle. Steel-reinforced bars, adjustable supports, and CEMA compliance.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
MARTIN GUARDABELT Medium-Duty Impact Cradle with 4 ft. Bar - Belt Conveyor Stability Solution
$1,299.99
Quantity: 1
Claim Your Seller Account
MARTIN GUARDABELT Medium-Duty Impact Cradle with 4 ft. Bar - Belt Conveyor Stability Solution
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

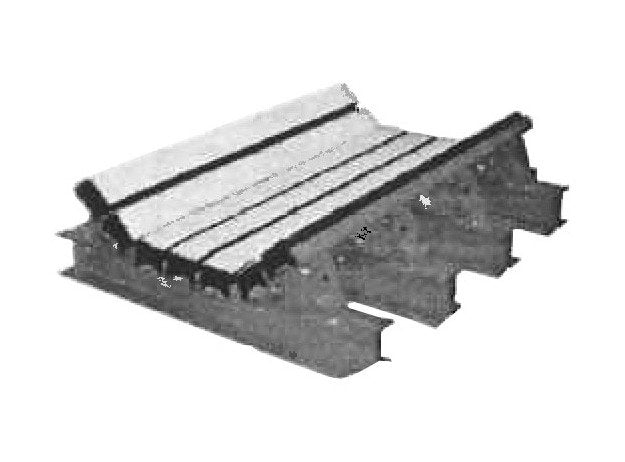

The MARTIN GUARDABELT Medium-Duty Impact Cradle with a 4 ft. bar offers superior belt conveyor stability and protection. Featuring steel-reinforced impact bars, adjustable supports for easy installation, and durable GUARDABELT Impact Bars, this cradle ensures a rugged structure that meets CEMA Design Standards. With a broad base and simple bar replacement mechanism, it is engineered to fit various conveyor sizes while withstanding wear and tear. Ideal for preventing material escape and damage, this impact cradle is a reliable solution for maintaining belt integrity and structure longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits 0
Steel Reinforcement for Impact BarsEach impact bar is reinforced with a bed of steel angles.Adjustable Supports Make Installation EasyWings adjust to match any standard trough angle.Allows Compensation for WearEccentrics in wing supports allow outer bars five degrees of wear adjustment.Durable GUARDABELT⢠Impact BarsRugged bars are composed of a top layer of low friction UHMW and a lower layer of energy-absorbing SBR rubber.Simple Bar ReplacementImpact bars are each secured with four T-Bolts.Meets CEMA Design StandardsThe GUARDABELT⢠Impact Cradle conforms to CEMA Standard No. 502-1998 & 575-2000 Bulk Material Belt Conveyor Troughing and Return Idlers.Engineered to Fit Your ConveyorThe GUARDABELT⢠Medium-Duty Impact Cradle is available for belts from 24 to 72 inches (500 to 2000 mm) wide.Rugged Structure Stands Up to AbuseSturdy cradle base of MARTIN® TRAC-MOUNT⢠Cradle is constructed from four I-beams. Light-Duty and Medium-Duty Cradles are formed channels.
Dimensions Belt Width
54 in | 1400 to 1600 mm
Dimensions Of Bars
12
Dimensions Shipping Weight
1184 lb | 537 kg
Notes 0

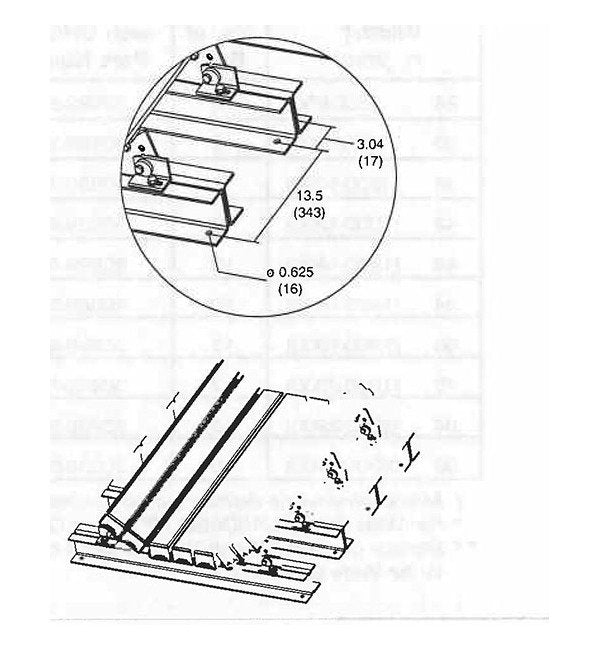

GUARDABELT⢠Impact Cradles are installed so that bars in the center of the cradle are set slightly below - (3/4 in.) (19 mm) to 1/2 in. (13 mm) - the unloaded beltâs line of travel. This allows the belt to absorb impact while avoiding continuous friction and wear if the belt is running empty. The wing bars on the sides of the cradle are installed in line with the idlers to allow effective sealing of the transfer point.When installing one or more GUARDABELT⢠Impact Cradles, it is necessary to verify there is adequate power in the conveyor drive to compensate for the additional frictional drag. Consult Martin Engineering for additional information.Standard base stringer width is the belt width plus 12 in. (305 mm). Mounting centers width is the belt width plus 9 in. (229 mm). Wide base stringer width is the belt width plus 18 in. (457 mm). Mounting centers width is belt width plus 15 in. (381 mm).
Specifications Base
Wide Base Cradle
Specifications Options
Standard Impact Cradle length for light, medium and TRAC-MOUNT⢠Cradles is 4 ft. (1220 mm).Contact Martin Engineering for specifications on non-standard cradle length.All belt support cradles available in picking
