MARTIN ORION Belt Cleaning Systems
MARTIN ORION Belt Cleaning Systems
SKU:BEL-c0ccb8
The MARTIN ORION Belt Cleaning System is the ultimate all-in-one solution for efficient conveyor belt cleaning.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
MARTIN ORION Belt Cleaning Systems
$2,399.99
Quantity: 1
Claim Your Seller Account
MARTIN ORION Belt Cleaning Systems
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN ORION Belt Cleaning System is a comprehensive solution designed to tackle tough conveyor belt cleaning challenges with three high-performance cleaners in one system. Engineered for durability and efficiency, this system removes carryback material and water from the belt effectively. The MARTIN QC™ #1; XHD Pre-Cleaner, ORION-2000 Secondary Belt Cleaner, and H20-4000 Water Cleaner work together seamlessly to ensure optimal belt cleanliness. With specialized mounts and tensioners, installation and maintenance are streamlined to meet diverse system requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Options Additional Options
Optional Water Spray Bar (Fit any or all cleaners with water spray system to improve cleaning efficiency and dust control.)

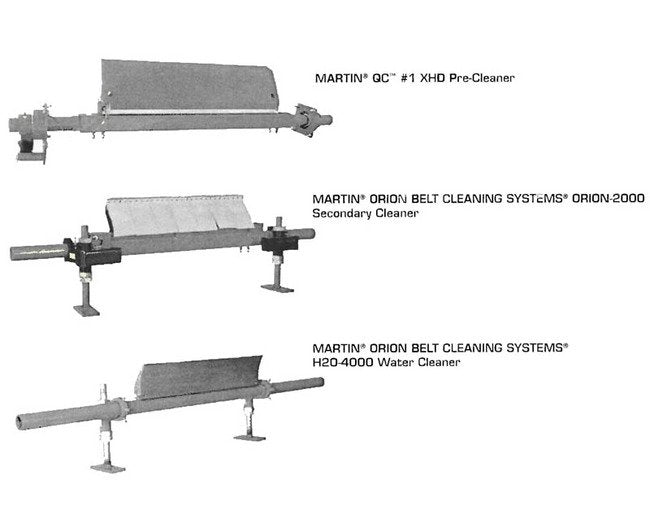

Components Of Components Included
(1) MARTIN® Orion Belt Cleaning Systems® H20-4000 Water Cleaner Single Assembly | (1) MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt Cleaner Assembly | (1) MARTIN® QC⢠#1; XHD Pre-Cleaner Assembly
Dimensions Belt Width
72 in
Specifications Major Components
MARTIN® QC⢠#1; XHD Pre-CleanerThe "constant-angle" design of this sturdy urethane pre-cleaner provides consistent cleaning over the life of the blade. An extra heavy-duty spring tensioner allows direct pressure to the ure thane blade to shed the overburden of adhered material from the belt. Blade change is a simple "one-pin" procedure.MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt CleanerIndividually adjustable tungsten carbide blades precisely remove sticky fines from the belt. Blade segments are individually cush ioned with engineered torsion springs to flex away from the belt for splice passage.MARTIN® Orion Belt Cleaning Systems® H20-4000 Water CleanerSoft urethane blade squeegees the belt for effective removal of residual material and moisture from grooves and cuts in cover, drying the belt.
Specifications System
Single
