MARTIN SHD 1200 Super Heavy-Duty Pre-Cleaner
MARTIN SHD 1200 Super Heavy-Duty Pre-Cleaner
SKU:BEL-203e2d
Built for the widest, fastest, and heaviest-loaded belts, MARTIN SHD 1200 offers unmatched cleaning efficiency and durability.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
MARTIN SHD 1200 Super Heavy-Duty Pre-Cleaner
$899.99
Quantity: 1
Claim Your Seller Account
MARTIN SHD 1200 Super Heavy-Duty Pre-Cleaner
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN SHD 1200 Super Heavy-Duty Pre-Cleaner is engineered for the widest, fastest, and most heavily-loaded belts, offering exceptional cleaning efficiency, low maintenance, and extended longevity. With a steel I-Beam frame, it can handle belts up to 120" wide and speeds up to 1500 fpm, carrying loads of up to 300,000 tons per day. Featuring Constant Angle Blade Design, Structural Steel Beam Construction, and Urethane blade options, this pre-cleaner ensures consistent, effective cleaning without the need for adjustment throughout its service life.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Guidelines 0

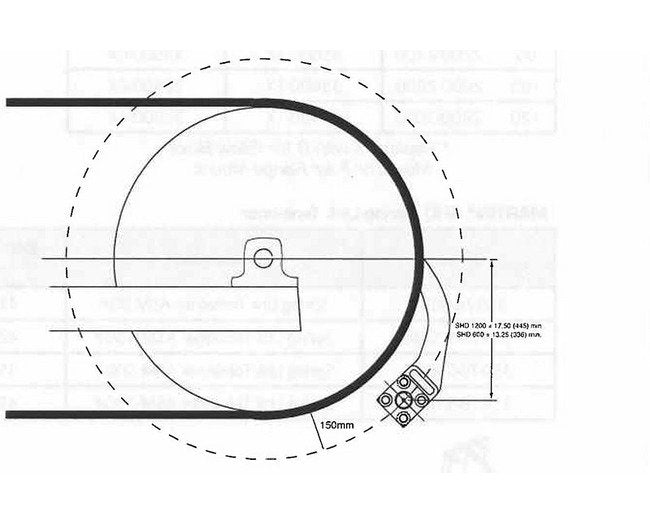

The MARTIN® SHD Pre-Cleaner is designed for high-speed, high-tonnage conveyors with large diameter head pulleys. It can be applied on any conveyor with a head pulley larger than 24 in. (600 mm) in diameter with sufficient room in the chute to mount the cleaner. Blade Height To achieve constant angle geometry to match pulley diameter, blades are available in two heights. Use 1200 Series MARTIN® SHD Blades for pulleys 48 in. (1200 mm) in diameter and larger. Specify 600 Series MARTIN® SHD Blades for pulleys smaller than 48 in. (1200 mm) in diameter.Tensioning Systems The MARTIN® SHD Belt Cleaner is available with Tumbuckle Tensioners to be installed on both sides of the head pulley.
Benefits 0
Massive BladesBlades are thick and robust to resist abuse and dissipate heat for extended wear life. MARTIN© SHD 1200 blades provide up to 12 in. (305 mm) of wearable material; MARTIN© SHD 600 blades provide 10.5 in. (207 mm).MARTIN® CARP Constant Angle Blade DesignMeans continuous effective cleaning across all stages of blade life.Structural Steel Beam ConstructionNo more bent mainframes, even with high tonnages and large lumps.System EngineeringDesign of cleaner and tensioner as one unit means consistant, effective cleaning with reduced service requirements.Reduced MaintenanceNo need for re-tensioning or cleaner adjustment for the life of the blade, which reduces labor costs and downtime.Urethane OptionsChoose blades from Standard (Orange) or High-Performance (Brown) Urethane. Both materials are MSHA-accepted (IC-95/6) for use in underground mining.Guaranteed Blade LifeMartin Engineering urethane technology and manufacturing options guarantee service life. The cost of replacement blades will be prorated if guaranteed life is not achieved. To determine the Guaranteed Wear Life for a specific application, see your Martin Engineering representative.
Dimensions Belt Width
42 in | 1000 to 1200 mm

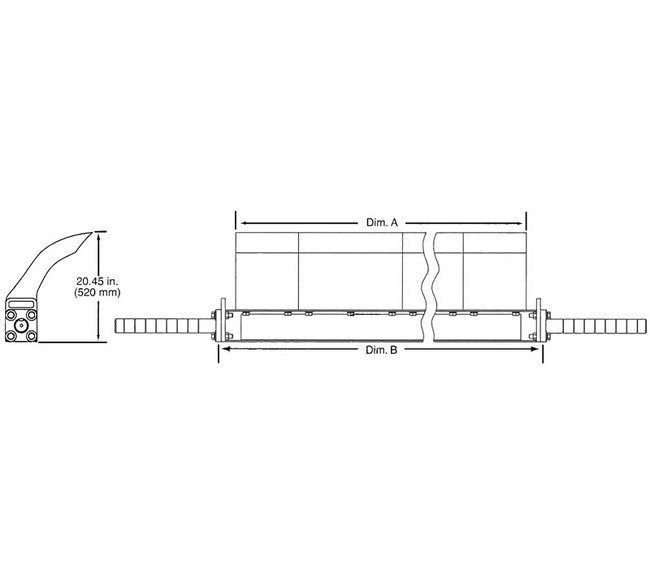

Dimensions Blade Width A
39.38 in | 1000 mm
Dimensions Mainframe Length B
44.81 in | 1138 mm
Dimensions Of Blades 20 In 500 Mm Wide
2
Dimensions Shipping Weight
289 lb | 131 kg
Specifications Blade Profile
SHD-1200
Specifications Blade Type
Urethane
Specifications End Weldment Length
40 in
Specifications Mainframe Type
Painted Orange
Specifications Tensioner Type
Painted Link Tensioner w/ Link Expansion Kit
Specifications Urethane Color
No Blades
