MARTIN Spiral Brush Belt Cleaner - Conveyor Cleaning Solution
MARTIN Spiral Brush Belt Cleaner - Conveyor Cleaning Solution
SKU:BEL-260941
Efficiently clean conveyor belts with MARTIN Spiral Brush Belt Cleaner - ideal for dry fines and challenging materials.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
MARTIN Spiral Brush Belt Cleaner - Conveyor Cleaning Solution
$1,499.99
Quantity: 1
Claim Your Seller Account
MARTIN Spiral Brush Belt Cleaner - Conveyor Cleaning Solution
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN Spiral Brush Belt Cleaner is engineered to effectively remove residual materials from conveyor belts with cleats, ribs, or chevrons. Featuring a continuous spiral wrap design, this cleaner ensures optimal cleaning performance on dry fines. With durable construction including stainless steel components, it offers efficient operation with a 1 HP motor and 350 rpm brush rotation speed. Benefit from its economical yet high-performance cleaning for tough applications, reducing clean-up costs and enhancing conveyor efficiency.
Ready to Grow Without Cash Flow Constraints?

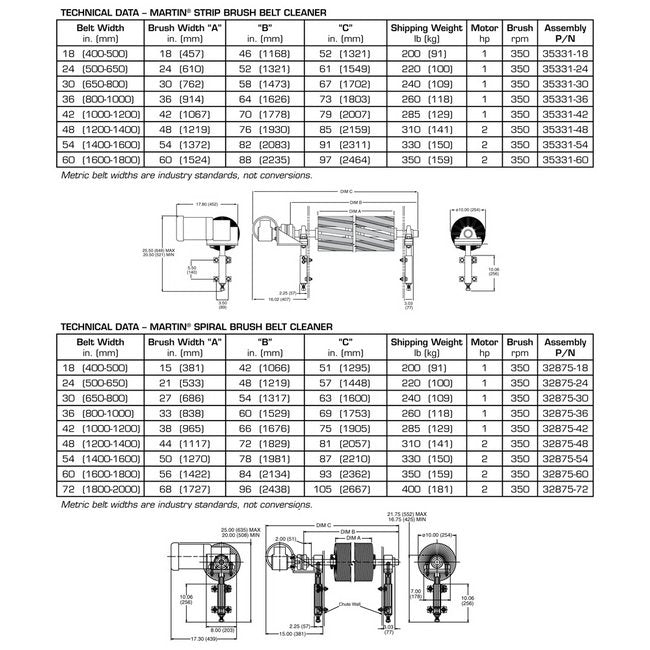

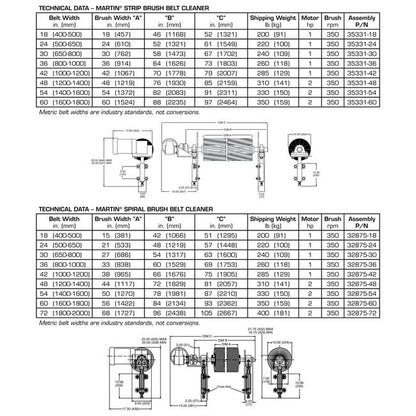

Product Specifications
Application Guidelines 0
Martin Engineering's Conveyor Belt Brush Cleaners are de signed for use in the secondary cleaning position. In other words, the recommended placement is at the point where the belt leaves the discharge pulley. (If that is not possible, the MARTIN® BRUSH Belt Cleaner may be mounted further along the conveyor's return run where it can be supported by an idler or pulley.) Installation of a precleaner on the face of the discharge pulley below the material stream is always recommended.
Benefits 0
Effective Cleaning Removes carryback fines and fibers with powered rotary action. Efficient Operation Efficient electric motor provides effective cleaning with out excessive power consumption. Economical SolutionEffective, yet low-cost answer to belt-borne residual material. Rugged ConstructionDurable angle iron and stainless steel components provide long service in tough conditions. High-Performance CleaningEffective cleaning performance on difficult applications, including belts with ribs, cleats, grooves, or chevrons, or belts carrying sticky materials or stringy fibers.
Dimensions Belt Width
18 in | 400 to 500 mm
Dimensions Brush Rotation Speed
350 rpm
Dimensions Brush Width A
15 in | 381 mm
Dimensions Dimension B
42 in | 1066 mm
Dimensions Dimension C
51 in | 1295 mm
Dimensions Motor Hp
1
Dimensions Shipping Weight
200 lb | 91 kg
Specifications Electric Motor
230 / 460 V, 3-Phase, 60 Hz
Specifications Service Temperature
-20 to 180 ºF | -29 to 82 ºC
Specifications Speed Reducer
5:1 Reduction - 1 & 2 hp on MARTIN® Spiral and Strip Brush Belt Cleaners
Specifications Standard Bristle Diameter
0.038 in | 0.96 mm
Specifications Standard Bristle Length
4 in | 102 mm
Specifications Standard Bristle Material
Polypropylene
When To Use 0
Belts carrying dry, dusty, crumbled materials that read ily release from bristles. Available in "low-profile" version and in wider constructions for challenging applications.
