MARTIN® BULL DAWG™ Belt Cleaner

MARTIN® BULL DAWG™ Belt Cleaner

BEL-43a4ed

Achieve superior belt cleaning with MARTIN® BULL DAWG™ Belt Cleaner. Aggressive performance for a cleaner conveyor experience.

$599.99
$599.99
Sale

Initiate Order

MARTIN® BULL DAWG™ Belt Cleaner

MARTIN® BULL DAWG™ Belt Cleaner

$599.99

Quantity: 1

Claim Your Seller Account

MARTIN® BULL DAWG™ Belt Cleaner

MARTIN® BULL DAWG™ Belt Cleaner

$599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® BULL DAWG™ Belt Cleaner by Martin Engineering delivers unparalleled cleaning performance for belt conveyors. Whether used as a pre-cleaner, secondary cleaner, or standalone solution, it ensures aggressive cleaning to eliminate material carryback effectively. With optimized dimensions, service temperature range, and versatile mounting options, this belt cleaner promises extended blade wear life of 7/16 inches with a Tungsten Carbide blade type. The painted frame, standard tension element, and seamless integration as part of a multiple-cleaner-system make it a top choice for reducing conveyor clean-up costs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

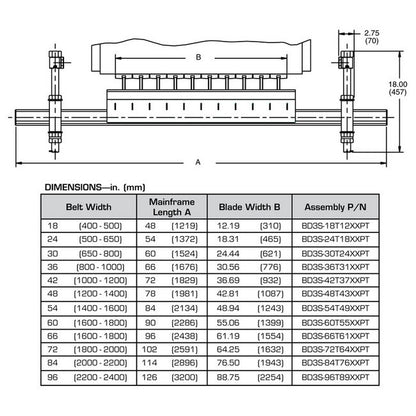

Dimensions Belt Width
24 in | 500 to 600 mm
Dimensions Blade Width B
18.31 in | 465 mm
Dimensions Mainframe Length A
54 in | 1372 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
No Clamp
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations

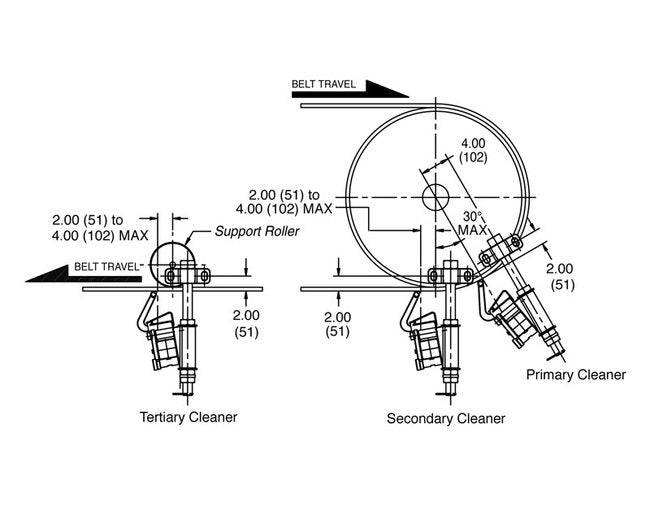

The MARTIN® BULL DAWG™ Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG™ Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Standard Block
