MARTIN® GUARDASEAL⢠Belt Support Cradles
MARTIN® GUARDASEAL⢠Belt Support Cradles
SKU:BEL-1eded5
Stabilize, protect, and prolong belt life with MARTIN® GUARDASEAL™ Belt Cradles.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
MARTIN® GUARDASEAL⢠Belt Support Cradles
$1,299.99
Quantity: 1
Claim Your Seller Account
MARTIN® GUARDASEAL⢠Belt Support Cradles
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® GUARDASEAL⢠Belt Support Cradles are expertly designed to stabilize belt paths, eliminate spillage, and protect belts from damage. Featuring single-bar designs with UHMW or Stainless Steel Bars, these cradles offer low friction, double wear life, and easy adjustment for wear. With center support rollers and adjustable configurations, they are versatile and ensure optimal belt support in various conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits 0
Stabilizes Belt PathCradles support belt edges, allowing effective seal. Protects the BeltCradles eliminate pinch points where trapped material can gouge the belt. Low FrictionBelt glides over low friction UHMW or stainless steel bars with low drive-power consumption of drive power and minimal heat buildup. Double Wear LifeUnique "box" design of UHWM bar allows use of both top and bottom surface. Simple to ServiceTo compensate for wear, adjust cradle easily with hand tools. Simple bar change without system disassembly. Cradles to Fit ConditionsCradles adjust to fit any trough angle. Options to meet application requirements.
Features 0
1 Adjustable to match belt trough 2 Single-bar or double-bar designs 3 Low-friction bars 4 Double the wear life 5 Adjustable for wear 6 Center support rollers (Standard on double-bar cradles)
Notes 0
Typical bars and cradles are 48 in. (1220 mm) in length. Special lengths are available. Martin Engineering recommends the installation of a MARTIN® TRAC-MOUNT⢠Idler set before and after each cradle. When installing one or more MARTIN® GUARDASEAL⢠Belt Support Cradles, it is necessary to check for adequate power in the conveyor drive to overcome the additional friction against the belt. Contact Martin Engi neering for additional information. MARTIN® GUARDASEAL⢠Belt Support Cradles are not recommended for conveyors operating at speeds over 700 fpm (3.5 m/sec) or that are less than 50 ft (15 m) in length. To improve belt support on short convey ors or high-speed belts, contact Martin Engineering.
Specifications Bars Per Side
One
Specifications Belt Width
30 in | 650 to 800 mm
Specifications Center Rollers
Optional
Specifications Cradles
Single-Bar

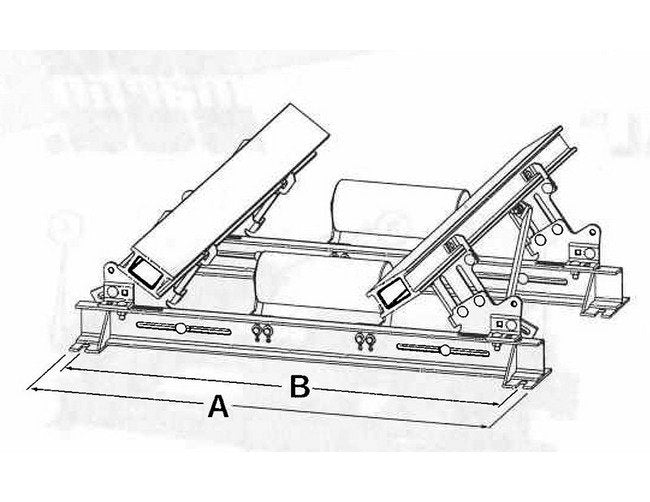

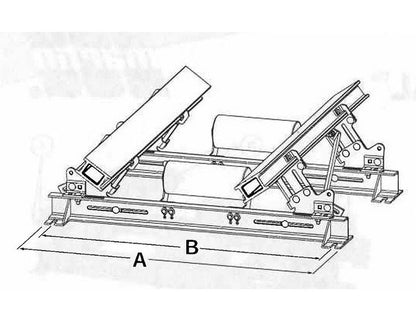

Specifications Mounting Centers B
39 in | 991 mm
Specifications Shipping Weight
135 lb | 61.2 kg
Specifications Stringer Style
Standard Wide Base
Specifications Stringer Width A
41.5 in | 1054 mm
