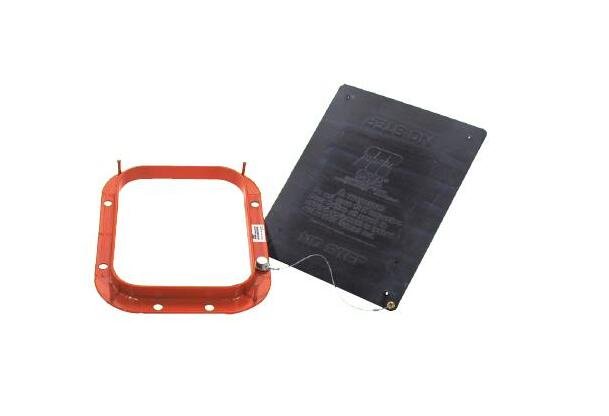

MARTIN® High-Temp Rubber Inspection Doors

MARTIN® High-Temp Rubber Inspection Doors

BEL-a439de

Dust-tight seal, high-temp resistance up to 400°F, quick access design, easy installation. Various sizes available.

$189.99
$189.99
Sale

Initiate Order

MARTIN® High-Temp Rubber Inspection Doors

MARTIN® High-Temp Rubber Inspection Doors

$189.99

Quantity: 1

Claim Your Seller Account

MARTIN® High-Temp Rubber Inspection Doors

MARTIN® High-Temp Rubber Inspection Doors

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your conveyor system with MARTIN® High-Temp Rubber Inspection Doors, featuring a dust-tight seal, quick access design, high-temperature resistance up to 400°F, and options for different applications. Designed for easy installation and available in various sizes to suit your needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application Guidelines 0
Martin Engineering recommends a minimum door size of 12 x 14 in. (305 x 356 mm) for pre-cleaners12 x 18 in. (305 x 457 mm) for secondary cleaners Other options, including food-grade rubber and/or stainless steel frame are available. See your Martin Engineering representative.
Benefits 0
Dust-Tight Seal"Snap-on" rubber doors form tight seal to contain dust and fines.Works in Tight SpacesOpens in less than 2.5 inches (65 mm) clearance for access in obstructed areas. Options to Fit ConditionsMaterials to match conditions, including high-temperature or food-grade applications. Optional inspection screen controls access when door is open; complies with ANSI B.20.1 1984 and ISO 1819-02.1.11. Simple Installation Door can be bolted or welded to enclosure wall. Matches Your ApplicationFive sizes available, from 9 x 12 to 24 x 24 inches (229 x 305 to 610 x 610 mm).Round MARTIN® POKE-HOLE™ Doors also available.
Dimensions Dimension A
11.25 in | 286 mm
Dimensions Dimension B
14.38 in | 365 mm
Dimensions Dimension C
8.75 in | 222 mm
Dimensions Dimension D
11.88 in | 302 mm
Dimensions Dimension E
2.81 in | 71 mm
Dimensions Dimension F
0.75 in | 19 mm
Dimensions Door Size Width X Height
9 x 12 in | 229 x 305 mm
Dimensions Shipping Weight
8 lb | 3.60 kg
Specifications Door Frame Material
304 Stainless Steel
Specifications Door Temperature Range
High Temperature Rubber Door (Max. 400°F)
Specifications Mounting Hardware
w/o Mounting Hardware
Specifications Safety Screen
w/o Safety Screen
