MARTIN® ORION Belt Cleaning System

MARTIN® ORION Belt Cleaning System

BEL-160c11

The MARTIN® ORION Belt Cleaning System - comprehensive, efficient, and easy maintenance. Perfect for tough belt cleaning challenges.

$4,299.99
$4,299.99
Sale

Initiate Order

MARTIN® ORION Belt Cleaning System

MARTIN® ORION Belt Cleaning System

$4,299.99

Quantity: 1

Claim Your Seller Account

MARTIN® ORION Belt Cleaning System

MARTIN® ORION Belt Cleaning System

$4,299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® ORION Belt Cleaning System offers a comprehensive solution with three specialized belt cleaners designed for challenging environments. With a single system, it effectively removes carryback materials and water from the belt. Engineered mounts and tensioners ensure easy installation and maintenance, while the optional water spray bar enhances cleaning efficiency and dust control. The system includes the MARTIN® QC™ #1 XHD Pre-Cleaner, ORION-2000 Secondary Belt Cleaner, and H20-4000 Water Cleaner, providing thorough belt cleaning for optimal conveyor performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Options Additional Options
Optional Water Spray Bar (Fit any or all cleaners with water spray system to improve cleaning efficiency and dust control.)
Components Of Components Included
(1) MARTIN® Orion Belt Cleaning Systems® H20-4000 Water Cleaner Single Assembly | (1) MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt Cleaner Assembly | (1) MARTIN® QC™ #1; XHD Pre-Cleaner Assembly
Dimensions Belt Width
66 in
Specifications Major Components

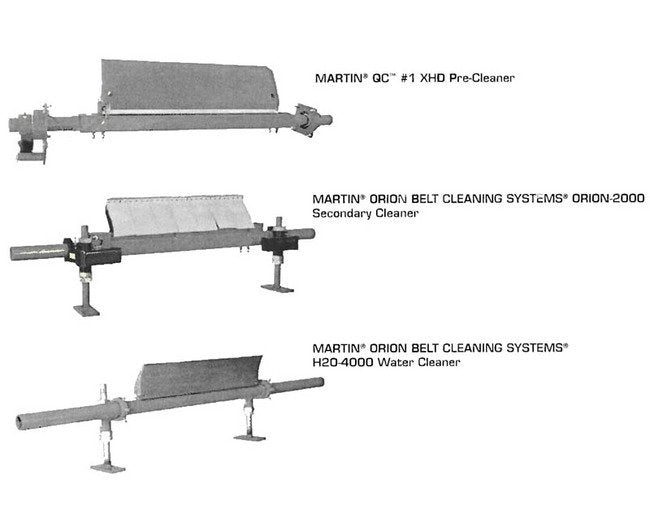

MARTIN® QC™ #1; XHD Pre-CleanerThe "constant-angle" design of this sturdy urethane pre-cleaner provides consistent cleaning over the life of the blade. An extra heavy-duty spring tensioner allows direct pressure to the ure thane blade to shed the overburden of adhered material from the belt. Blade change is a simple "one-pin" procedure.MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt CleanerIndividually adjustable tungsten carbide blades precisely remove sticky fines from the belt. Blade segments are individually cush ioned with engineered torsion springs to flex away from the belt for splice passage.MARTIN® Orion Belt Cleaning Systems® H20-4000 Water CleanerSoft urethane blade squeegees the belt for effective removal of residual material and moisture from grooves and cuts in cover, drying the belt.
Specifications System
Single
