MARTIN® ORION Triple Cleaning System
MARTIN® ORION Triple Cleaning System
SKU:BEL-d5999d
Efficiently remove carryback material and water with the MARTIN® ORION Triple Cleaning System. Ideal for tough conditions, this system offers consistent cleaning, precise fines removal, and effective moisture control.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
MARTIN® ORION Triple Cleaning System
$1,999.99
Quantity: 1
Claim Your Seller Account
MARTIN® ORION Triple Cleaning System
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® ORION Triple Cleaning System offers unparalleled efficiency in removing carryback material and water from belts, making it ideal for tough conditions above or below ground. Featuring a double system with major components including MARTIN® QC⢠#1, the XHD Pre-Cleaner, ORION-2000 Secondary Belt Cleaner, and H20-4000 Water Cleaner, this system ensures consistent cleaning, precise removal of sticky fines, and effective moisture removal. Specialized mounts and tensioners simplify installation and maintenance, with an optional water spray bar available for enhanced cleaning efficiency and dust control. The system's dimensions accommodate a belt width of 36 inches, providing a comprehensive solution for reducing conveyor clean-up costs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Options Additional Options
Optional Water Spray Bar (Fit any or all cleaners with water spray system to improve cleaning efficiency and dust control.)
Components Of Components Included
(1) MARTIN® Orion Belt Cleaning Systems® H20-4000 Water Cleaner Dual Assembly | (1) MARTIN® QC⢠#1; XHD Pre-Cleaner Assembly | (2) MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt Cleaner Assembly
Dimensions Belt Width
36 in

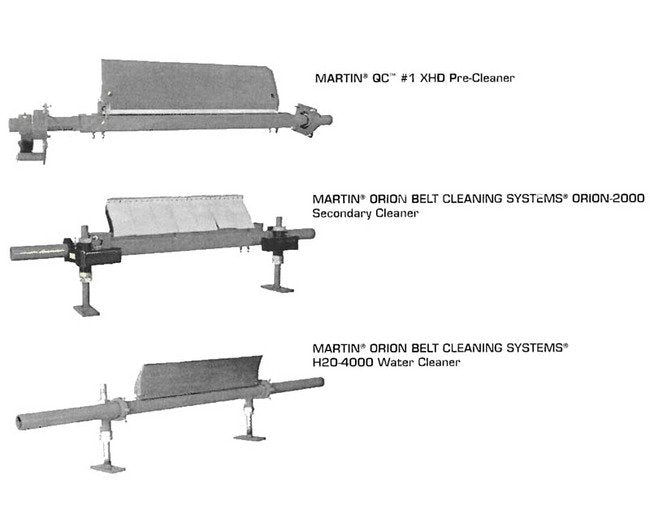

Specifications Major Components
MARTIN® QC⢠#1; XHD Pre-CleanerThe "constant-angle" design of this sturdy urethane pre-cleaner provides consistent cleaning over the life of the blade. An extra heavy-duty spring tensioner allows direct pressure to the ure thane blade to shed the overburden of adhered material from the belt. Blade change is a simple "one-pin" procedure.MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt CleanerIndividually adjustable tungsten carbide blades precisely remove sticky fines from the belt. Blade segments are individually cush ioned with engineered torsion springs to flex away from the belt for splice passage.MARTIN® Orion Belt Cleaning Systems® H20-4000 Water CleanerSoft urethane blade squeegees the belt for effective removal of residual material and moisture from grooves and cuts in cover, drying the belt.
Specifications System
Double
