MARTIN® QC™ #2 Secondary Belt Cleaner

MARTIN® QC™ #2 Secondary Belt Cleaner

BEL-23d1a6

Efficient and durable MARTIN® QC™ #2 Secondary Belt Cleaner for 18-96" belts, featuring one-pin blade replacement system and tungsten carbide, stainless steel, or ceramic blade options.

$899.99
$899.99
Sale

Initiate Order

MARTIN® QC™ #2 Secondary Belt Cleaner

MARTIN® QC™ #2 Secondary Belt Cleaner

$899.99

Quantity: 1

Claim Your Seller Account

MARTIN® QC™ #2 Secondary Belt Cleaner

MARTIN® QC™ #2 Secondary Belt Cleaner

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® QC™ #2 Secondary Belt Cleaner is designed for belt widths ranging from 18" to 96" with a maximum belt speed of 1000 FPM. Featuring a unique teardrop-shaped blade profile and dual linear Spring Tensioners, this cleaner delivers efficient cleaning performance at a competitive price point. The innovative one-pin blade replacement system makes maintenance quick and easy. With blade options including tungsten carbide, stainless steel, or ceramic, this cleaner ensures durability and effective cleaning performance, reducing costs and service downtime.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Benefits 0
Fast Return on InvestmentIntegrated cleaner and tensioner system provides effective cleaning without a high price tag, providing a prompt payback.Maintains Effective CleaningIndividual 3 inch (76 mm) wide blades independently conform to profile of moving belt. Saves on Maintenance ExpensesTungsten carbide blade tips last a long time, reducing costs for service downtime, labor, and replacement parts. Cuts Blade Service CostsBlade change is a fast and easy, one-pin procedure. Blades are preloaded onto a belt-width cartridge, so one worker can quickly replace blade.Won't Damage Belt on SpliceSystem absorbs splice shock to safeguard belt, splice, and cleaner. Linear relief is built into the spring tensioner; urethane blades absorb radial shock.
Dimensions Belt Width
48 in
Dimensions Blade Width C
45 in | 1143 mm
Dimensions Dimension B
46.50 in | 1181 mm
Dimensions Mainframe Length A
78 in | 1981 mm
Dimensions Weight
88.10 lb | 39.90 kg
Notes 0

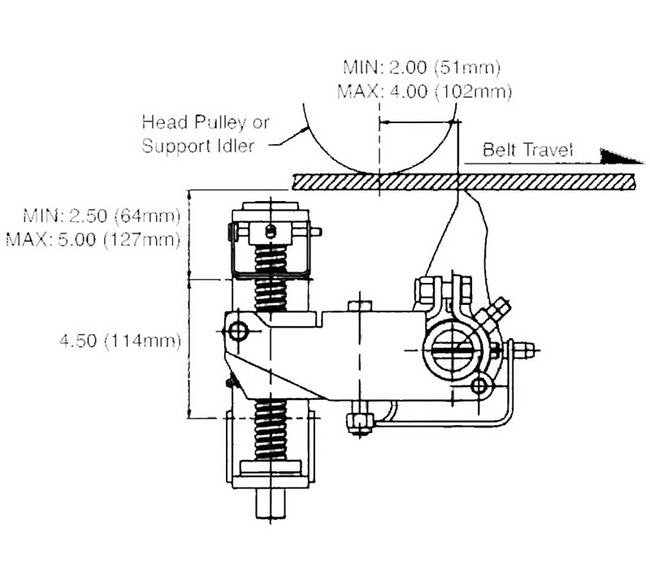

OrderingBlade coverage is belt width minus 3 inches (76 mm). To protect belt edges, first blade on each end of cleaner assembly does not have tungsten carbide tip.ApplicationMartin Engineering recommends that the MARTIN® QC™ #2; Secondary Belt Cleaning System be installed so the cleaning blade contacts the belt at a point 2 to 4 inches (51 to 102 mm) after the point where the belt leaves the head (discharge) pulley. If obstructions prevent installation at this point, or if additional cleaners are desired, the cleaner should be installed 2 to 4 inches (51 to 102 mm) past the point where the belt leaves the support idler.See your Martin Engineering representative for more infor mation, or visit www.martin-eng.com.
Specifications Blade Type
Ceramic
Specifications Door Type
No Door
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Max Service Constant Temperature
-20 to 160 ºF | -29 to 71 ºC
Specifications Tensioner Type
MARTIN® QC™ #2; Spring Tensioner

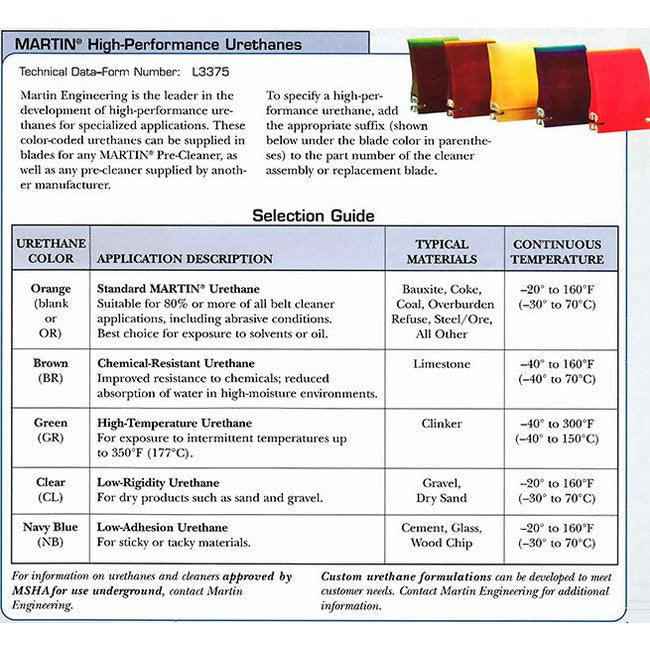

Specifications Urethane Color
Orange
Specifications Wear Life
0.5 in | 13 mm
