MARTIN® QC™ #2 Secondary Cleaner
MARTIN® QC™ #2 Secondary Cleaner
SKU:BEL-37c08d
Efficient MARTIN® QC™ #2 Secondary Cleaner for belt widths 18"-96" with teardrop-shaped blades and easy one-pin replacement.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
MARTIN® QC™ #2 Secondary Cleaner
$549.99
Quantity: 1
Claim Your Seller Account
MARTIN® QC™ #2 Secondary Cleaner
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® QC™ #2 Secondary Cleaner is designed for belt widths ranging from 18" to 96" and a maximum belt speed of 1000 FPM. Featuring a teardrop-shaped blade profile and dual linear Spring Tensioners, this secondary cleaner delivers efficient cleaning performance at an economical price point. The unique blade design ensures individual 3" wide blades conform to the belt's profile, with blade tip options in tungsten carbide, stainless steel, or ceramic. With easy one-pin blade replacement and built-in shock absorption, this cleaner offers cost-saving benefits and prevents belt damage on splice.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits 0
Fast Return on InvestmentIntegrated cleaner and tensioner system provides effective cleaning without a high price tag, providing a prompt payback.Maintains Effective CleaningIndividual 3 inch (76 mm) wide blades independently conform to profile of moving belt. Saves on Maintenance ExpensesTungsten carbide blade tips last a long time, reducing costs for service downtime, labor, and replacement parts. Cuts Blade Service CostsBlade change is a fast and easy, one-pin procedure. Blades are preloaded onto a belt-width cartridge, so one worker can quickly replace blade.Won't Damage Belt on SpliceSystem absorbs splice shock to safeguard belt, splice, and cleaner. Linear relief is built into the spring tensioner; urethane blades absorb radial shock.
Dimensions Belt Width
72 in
Dimensions Blade Width C
69 in | 1753 mm
Dimensions Dimension B
70.50 in | 1791 mm
Dimensions Mainframe Length A
102 in | 2591 mm
Dimensions Weight
114.30 lb | 51.80 kg
Notes 0

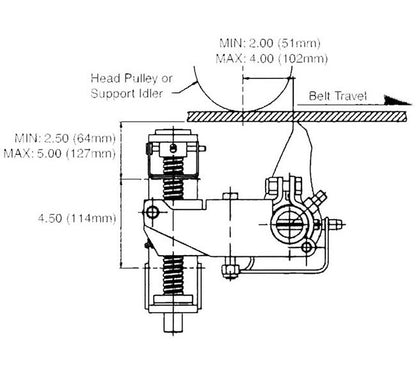

OrderingBlade coverage is belt width minus 3 inches (76 mm). To protect belt edges, first blade on each end of cleaner assembly does not have tungsten carbide tip.ApplicationMartin Engineering recommends that the MARTIN® QC⢠#2; Secondary Belt Cleaning System be installed so the cleaning blade contacts the belt at a point 2 to 4 inches (51 to 102 mm) after the point where the belt leaves the head (discharge) pulley. If obstructions prevent installation at this point, or if additional cleaners are desired, the cleaner should be installed 2 to 4 inches (51 to 102 mm) past the point where the belt leaves the support idler.See your Martin Engineering representative for more infor mation, or visit www.martin-eng.com.
Specifications Blade Type
Tungsten Carbide
Specifications Door Type
No Door
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Max Service Constant Temperature
-20 to 160 ºF | -29 to 71 ºC
Specifications Tensioner Type
MARTIN® QC⢠#2; Spring Tensioner

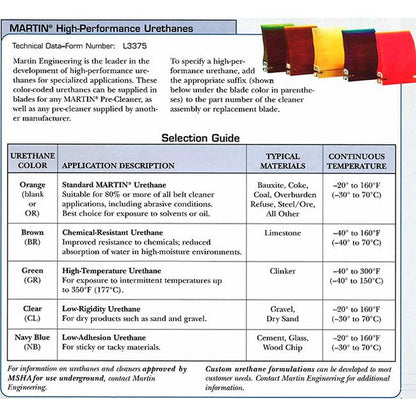

Specifications Urethane Color
Brown
Specifications Wear Life
0.5 in | 13 mm
