MARTIN® QC™ #2 Secondary Cleaner

MARTIN® QC™ #2 Secondary Cleaner

BEL-bcac81

Efficiently clean conveyor belts with MARTIN® QC™ #2 Secondary Cleaner for lasting performance and cost savings. Get yours today!

$349.99
$349.99
Sale

Initiate Order

MARTIN® QC™ #2 Secondary Cleaner

MARTIN® QC™ #2 Secondary Cleaner

$349.99

Quantity: 1

Claim Your Seller Account

MARTIN® QC™ #2 Secondary Cleaner

MARTIN® QC™ #2 Secondary Cleaner

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® QC™ #2 Secondary Cleaner offers efficient cleaning performance at a budget-friendly cost. Featuring a unique teardrop-shaped blade profile and dual linear Spring Tensioners, this advanced cleaner ensures effective belt cleaning. It introduces a revolutionary one-pin blade replacement system with 3

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Benefits 0
Fast Return on InvestmentIntegrated cleaner and tensioner system provides effective cleaning without a high price tag, providing a prompt payback.Maintains Effective CleaningIndividual 3 inch (76 mm) wide blades independently conform to profile of moving belt. Saves on Maintenance ExpensesTungsten carbide blade tips last a long time, reducing costs for service downtime, labor, and replacement parts. Cuts Blade Service CostsBlade change is a fast and easy, one-pin procedure. Blades are preloaded onto a belt-width cartridge, so one worker can quickly replace blade.Won't Damage Belt on SpliceSystem absorbs splice shock to safeguard belt, splice, and cleaner. Linear relief is built into the spring tensioner; urethane blades absorb radial shock.
Dimensions Belt Width
18 in
Dimensions Blade Width C
15 in | 381 mm
Dimensions Dimension B
16.50 in | 419 mm
Dimensions Mainframe Length A
48 in | 1219 mm
Dimensions Weight
55.30 lb | 25.10 kg
Notes 0

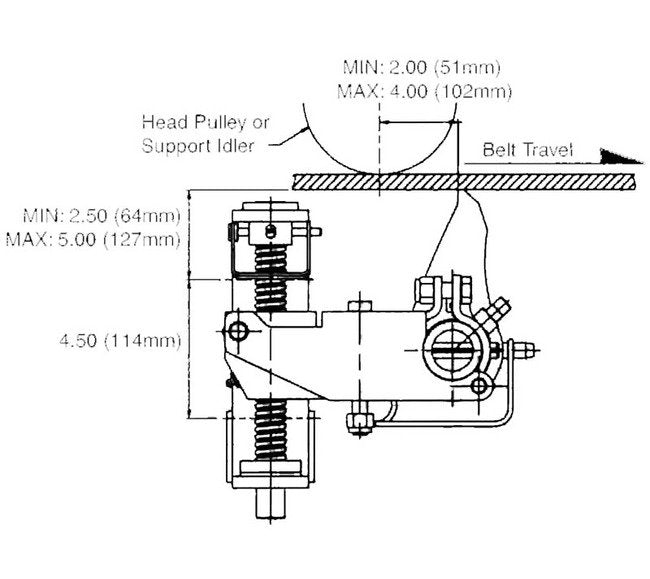

OrderingBlade coverage is belt width minus 3 inches (76 mm). To protect belt edges, first blade on each end of cleaner assembly does not have tungsten carbide tip.ApplicationMartin Engineering recommends that the MARTIN® QC™ #2; Secondary Belt Cleaning System be installed so the cleaning blade contacts the belt at a point 2 to 4 inches (51 to 102 mm) after the point where the belt leaves the head (discharge) pulley. If obstructions prevent installation at this point, or if additional cleaners are desired, the cleaner should be installed 2 to 4 inches (51 to 102 mm) past the point where the belt leaves the support idler.See your Martin Engineering representative for more infor mation, or visit www.martin-eng.com.
Specifications Blade Type
Stainless Steel
Specifications Door Type
No Door
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Max Service Constant Temperature
-20 to 160 ºF | -29 to 71 ºC
Specifications Tensioner Type
MARTIN® QC™ #2; Spring Tensioner
Specifications Urethane Color
Brown
Specifications Wear Life
0.5 in | 13 mm
