MARTIN® Rubber Inspection Doors - High Temp Access Solution

MARTIN® Rubber Inspection Doors - High Temp Access Solution

BEL-bfecb0

Efficient access with MARTIN® Rubber Inspection Doors - dust-tight seal, high-temperature rubber, easy installation.

$239.99
$239.99
Sale

Initiate Order

MARTIN® Rubber Inspection Doors - High Temp Access Solution

MARTIN® Rubber Inspection Doors - High Temp Access Solution

$239.99

Quantity: 1

Claim Your Seller Account

MARTIN® Rubber Inspection Doors - High Temp Access Solution

MARTIN® Rubber Inspection Doors - High Temp Access Solution

$239.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

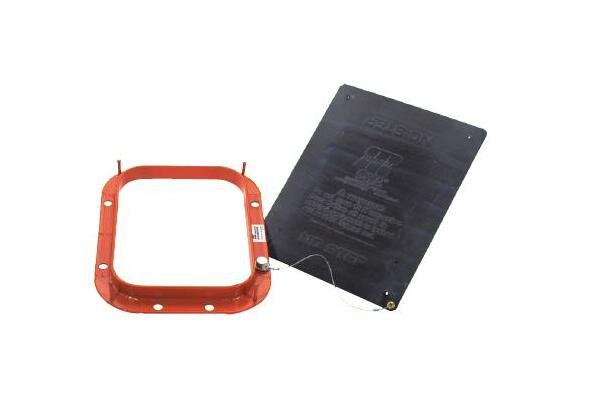

The MARTIN® Rubber Inspection Doors offer efficient access to belt cleaners and chute components. Crafted from high-temperature rubber with a painted mild steel frame, these doors provide a dust-tight seal, ensuring containment of dust and fines. Designed for tight spaces, they open with less than 2.5 inches clearance, making them perfect for obstructed areas. With various material options to suit diverse applications and optional safety screen for added security, these doors offer simple installation and come in five sizes for a customized fit.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application Guidelines 0
Martin Engineering recommends a minimum door size of 12 x 14 in. (305 x 356 mm) for pre-cleaners12 x 18 in. (305 x 457 mm) for secondary cleaners Other options, including food-grade rubber and/or stainless steel frame are available. See your Martin Engineering representative.
Benefits 0
Dust-Tight Seal"Snap-on" rubber doors form tight seal to contain dust and fines.Works in Tight SpacesOpens in less than 2.5 inches (65 mm) clearance for access in obstructed areas. Options to Fit ConditionsMaterials to match conditions, including high-temperature or food-grade applications. Optional inspection screen controls access when door is open; complies with ANSI B.20.1 1984 and ISO 1819-02.1.11. Simple Installation Door can be bolted or welded to enclosure wall. Matches Your ApplicationFive sizes available, from 9 x 12 to 24 x 24 inches (229 x 305 to 610 x 610 mm).Round MARTIN® POKE-HOLE™ Doors also available.
Dimensions Dimension A
11.25 in | 286 mm
Dimensions Dimension B
14.38 in | 365 mm
Dimensions Dimension C
8.75 in | 222 mm
Dimensions Dimension D
11.88 in | 302 mm
Dimensions Dimension E
2.81 in | 71 mm
Dimensions Dimension F
0.75 in | 19 mm
Dimensions Door Size Width X Height
9 x 12 in | 229 x 305 mm
Dimensions Shipping Weight
8 lb | 3.60 kg
Specifications Door Frame Material
Painted Mild Steel
Specifications Door Temperature Range
High Temperature Rubber Door (Max. 400°F)
Specifications Mounting Hardware
w/ Mounting Hardware
Specifications Safety Screen
w/o Safety Screen
