MARTIN® SHD 1200 Pre-Cleaner with Link Tensioner
MARTIN® SHD 1200 Pre-Cleaner with Link Tensioner
SKU:BEL-d7d2e6
Experience ultimate belt cleaning with MARTIN® SHD 1200 Pre-Cleaner for high-speed conveyors. Guaranteed blade life & reduced maintenance costs.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
MARTIN® SHD 1200 Pre-Cleaner with Link Tensioner
$2,899.99
Quantity: 1
Claim Your Seller Account
MARTIN® SHD 1200 Pre-Cleaner with Link Tensioner
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® SHD 1200 Pre-Cleaner with Link Tensioner is engineered for heavy-duty applications, designed to handle high-speed conveyors with large head pulleys. With massive urethane blades, corrosion-resistant construction, and constant pressure design, this cleaner ensures effective cleaning, minimal maintenance, and extended service life. Choose between standard and high-performance urethane blades for optimal performance. The MARTIN® SHD 1200 Pre-Cleaner meets the toughest industrial demands, offering guaranteed blade life and reduced operational costs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Guidelines 0

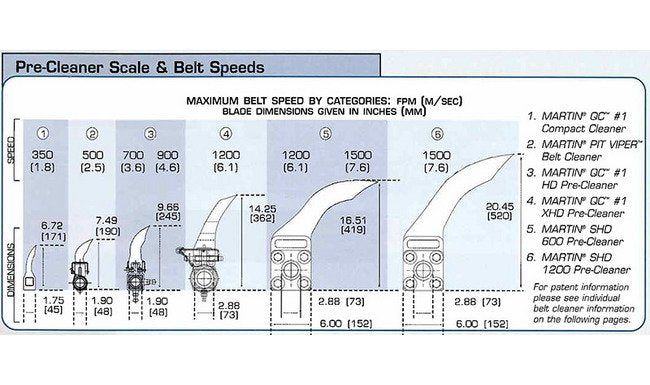

The MARTIN® SHD Pre-Cleaner is designed for high-speed, high-tonnage conveyors with large diameter head pulleys. It can be applied on any conveyor with a head pulley larger than 24 in. (600 mm) in diameter with sufficient room in the chute to mount the cleaner. Blade Height To achieve constant angle geometry to match pulley diameter, blades are available in two heights. Use 1200 Series MARTIN® SHD Blades for pulleys 48 in. (1200 mm) in diameter and larger. Specify 600 Series MARTIN® SHD Blades for pulleys smaller than 48 in. (1200 mm) in diameter.Tensioning Systems The MARTIN® SHD Belt Cleaner is available with Tumbuckle Tensioners to be installed on both sides of the head pulley.
Benefits 0
Massive BladesBlades are thick and robust to resist abuse and dissipate heat for extended wear life. MARTIN© SHD 1200 blades provide up to 12 in. (305 mm) of wearable material; MARTIN© SHD 600 blades provide 10.5 in. (207 mm).MARTIN® CARP Constant Angle Blade DesignMeans continuous effective cleaning across all stages of blade life.Structural Steel Beam ConstructionNo more bent mainframes, even with high tonnages and large lumps.System EngineeringDesign of cleaner and tensioner as one unit means consistant, effective cleaning with reduced service requirements.Reduced MaintenanceNo need for re-tensioning or cleaner adjustment for the life of the blade, which reduces labor costs and downtime.Urethane OptionsChoose blades from Standard (Orange) or High-Performance (Brown) Urethane. Both materials are MSHA-accepted (IC-95/6) for use in underground mining.Guaranteed Blade LifeMartin Engineering urethane technology and manufacturing options guarantee service life. The cost of replacement blades will be prorated if guaranteed life is not achieved. To determine the Guaranteed Wear Life for a specific application, see your Martin Engineering representative.
Dimensions Belt Width
54 in | 1400 to 1600 mm

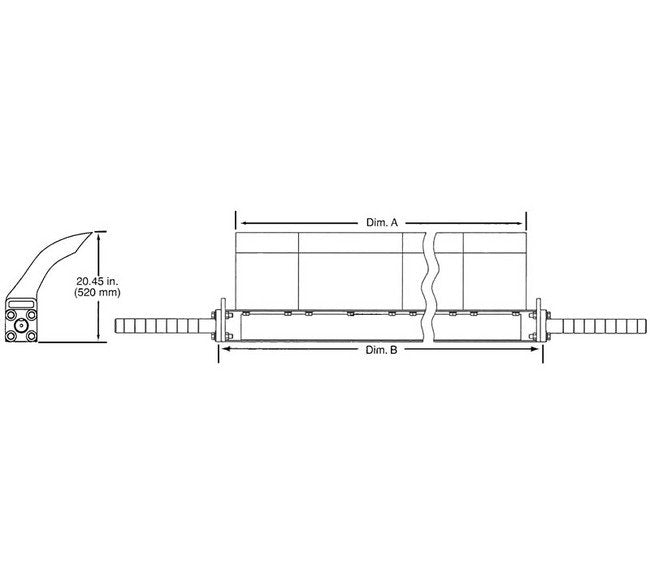

Dimensions Blade Width A
51.19 in | 1200 mm
Dimensions Mainframe Length B
56.63 in | 1438 mm
Dimensions Of Blades 12 In 300 Mm Wide
1
Dimensions Of Blades 20 In 500 Mm Wide
2
Dimensions Shipping Weight
369 lb | 167 kg
Specifications Blade Profile
SHD-1200
Specifications Blade Type
Urethane w/ Ceramic Block
Specifications End Weldment Length
30 in
Specifications Mainframe Type
Corrosion Resistant
Specifications Tensioner Type
Corrosion Resistant Link Tensioner w/ Link Expansion Kit
Specifications Urethane Color
Green
