MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner
MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner
SKU:BEL-7d4c47
Efficiently clean massive belts with MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner. Advanced design for low maintenance and extended wear life.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner
$1,999.99
Quantity: 1
Claim Your Seller Account
MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner is specifically engineered for high-speed, high-tonnage conveyors with large diameter head pulleys. Built with advanced engineering and robust construction, this pre-cleaner ensures effective cleaning, low maintenance, and long life even under the most demanding conditions. Featuring a corrosion-resistant mainframe and urethane blades, the SHD 1200 offers massive blades for extended wear life, continuous effective cleaning with the MARTIN© CARP Constant Angle Blade Design, structural steel beam construction for durability, reduced maintenance, diverse urethane options, and guaranteed blade life. Ideal for belts up to 120 inches wide and speeds up to 1500 fpm, the MARTIN® SHD 1200 Pre-Cleaner delivers consistent, efficient cleaning performance without the need for frequent adjustments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Guidelines 0

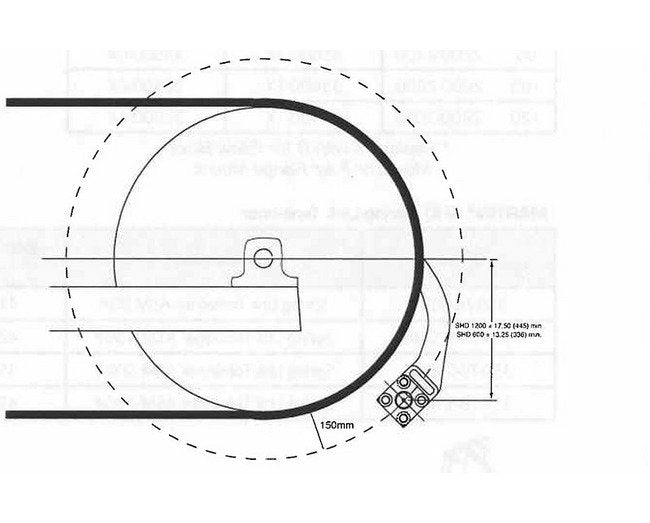

The MARTIN® SHD Pre-Cleaner is designed for high-speed, high-tonnage conveyors with large diameter head pulleys. It can be applied on any conveyor with a head pulley larger than 24 in. (600 mm) in diameter with sufficient room in the chute to mount the cleaner. Blade Height To achieve constant angle geometry to match pulley diameter, blades are available in two heights. Use 1200 Series MARTIN® SHD Blades for pulleys 48 in. (1200 mm) in diameter and larger. Specify 600 Series MARTIN® SHD Blades for pulleys smaller than 48 in. (1200 mm) in diameter.Tensioning Systems The MARTIN® SHD Belt Cleaner is available with Tumbuckle Tensioners to be installed on both sides of the head pulley.
Benefits 0
Massive BladesBlades are thick and robust to resist abuse and dissipate heat for extended wear life. MARTIN© SHD 1200 blades provide up to 12 in. (305 mm) of wearable material; MARTIN© SHD 600 blades provide 10.5 in. (207 mm).MARTIN® CARP Constant Angle Blade DesignMeans continuous effective cleaning across all stages of blade life.Structural Steel Beam ConstructionNo more bent mainframes, even with high tonnages and large lumps.System EngineeringDesign of cleaner and tensioner as one unit means consistant, effective cleaning with reduced service requirements.Reduced MaintenanceNo need for re-tensioning or cleaner adjustment for the life of the blade, which reduces labor costs and downtime.Urethane OptionsChoose blades from Standard (Orange) or High-Performance (Brown) Urethane. Both materials are MSHA-accepted (IC-95/6) for use in underground mining.Guaranteed Blade LifeMartin Engineering urethane technology and manufacturing options guarantee service life. The cost of replacement blades will be prorated if guaranteed life is not achieved. To determine the Guaranteed Wear Life for a specific application, see your Martin Engineering representative.
Dimensions Belt Width
54 in | 1400 to 1600 mm
Dimensions Blade Width A
51.19 in | 1200 mm
Dimensions Mainframe Length B
56.63 in | 1438 mm
Dimensions Of Blades 12 In 300 Mm Wide
1
Dimensions Of Blades 20 In 500 Mm Wide
2
Dimensions Shipping Weight
369 lb | 167 kg
Specifications Blade Profile
SHD-1200
Specifications Blade Type
Urethane
Specifications End Weldment Length
40 in
Specifications Mainframe Type
Corrosion Resistant
Specifications Tensioner Type
Corrosion Resistant Link Tensioner w/ Link Expansion Kit
Specifications Urethane Color
Green
