MARTIN® SHD Spring-Link Tensioner Assembly 150#

MARTIN® SHD Spring-Link Tensioner Assembly 150#

BEL-b69e2e

Enhance conveyor performance with the MARTIN® SHD Spring-Link Tensioner ASM 150#, designed for superior belt cleaning and extended wear life.

$289.99
$289.99
Sale

Initiate Order

MARTIN® SHD Spring-Link Tensioner Assembly 150#

MARTIN® SHD Spring-Link Tensioner Assembly 150#

$289.99

Quantity: 1

Claim Your Seller Account

MARTIN® SHD Spring-Link Tensioner Assembly 150#

MARTIN® SHD Spring-Link Tensioner Assembly 150#

$289.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® SHD Spring-Link Tensioner ASM 150# is specifically designed for MARTIN® Super Heavy-Duty Pre-Cleaners, offering advanced engineering for effective belt cleaning with minimal maintenance and extended wear life. Suitable for high-speed, high-tonnage conveyors with large diameter head pulleys, it ensures consistent cleaning and long maintenance intervals under the most demanding conditions. With adjustable Tumbuckle Tensioners and blades available in different heights, this tensioner assembly is engineered for superior performance on wide, fast-moving, heavily loaded belts. Invest in reliability and durability with the MARTIN® SHD Spring-Link Tensioner ASM 150#.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application Guidelines 0
The MARTIN® SHD Pre-Cleaner is designed for high-speed, high-tonnage conveyors with large diameter head pulleys. It can be applied on any conveyor with a head pulley larger than 24 in. (600 mm) in diameter with sufficient room in the chute to mount the cleaner. Blade Height To achieve constant angle geometry to match pulley diameter, blades are available in two heights. Use 1200 Series MARTIN® SHD Blades for pulleys 48 in. (1200 mm) in diameter and larger. Specify 600 Series MARTIN® SHD Blades for pulleys smaller than 48 in. (1200 mm) in diameter.Tensioning Systems The MARTIN® SHD Belt Cleaner is available with Tumbuckle Tensioners to be installed on both sides of the head pulley.

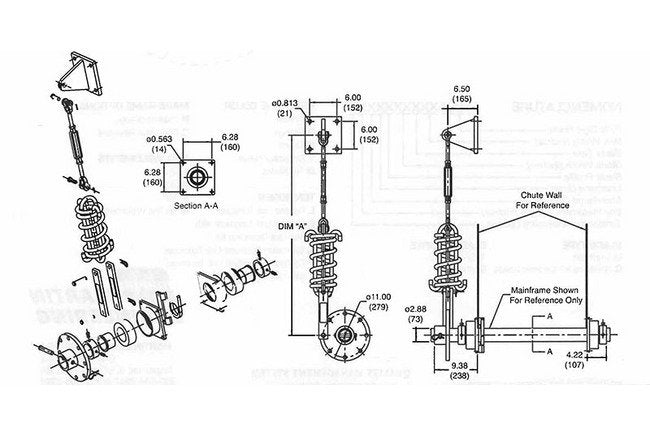

Dimensions Mounting Height A
42.25 in | 1073 mm
