MARTIN® SHD Spring-Link Tensioner Assembly 750#
MARTIN® SHD Spring-Link Tensioner Assembly 750#
SKU:BEL-2cf776
Enhance belt cleaning efficiency with the MARTIN® SHD Tensioner ASM 750# for heavy-duty conveyors.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
MARTIN® SHD Spring-Link Tensioner Assembly 750#
$289.99
Quantity: 1
Claim Your Seller Account
MARTIN® SHD Spring-Link Tensioner Assembly 750#
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® SHD Spring-Link Tensioner Assembly 750# is specifically designed for MARTIN® Super Heavy-Duty Pre-Cleaner systems, ensuring effective cleaning, low maintenance, and extended wear life. Engineered for high-speed and high-tonnage conveyors with large diameter head pulleys, this tensioner assembly excels under the most demanding conditions, accommodating belts up to 120 inches wide and speeds up to 1500 fpm. With Tumbuckle Tensioners for precise adjustment, this tensioner ensures consistent cleaning and reduces conveyor clean-up costs significantly.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Guidelines 0
The MARTIN® SHD Pre-Cleaner is designed for high-speed, high-tonnage conveyors with large diameter head pulleys. It can be applied on any conveyor with a head pulley larger than 24 in. (600 mm) in diameter with sufficient room in the chute to mount the cleaner. Blade Height To achieve constant angle geometry to match pulley diameter, blades are available in two heights. Use 1200 Series MARTIN® SHD Blades for pulleys 48 in. (1200 mm) in diameter and larger. Specify 600 Series MARTIN® SHD Blades for pulleys smaller than 48 in. (1200 mm) in diameter.Tensioning Systems The MARTIN® SHD Belt Cleaner is available with Tumbuckle Tensioners to be installed on both sides of the head pulley.

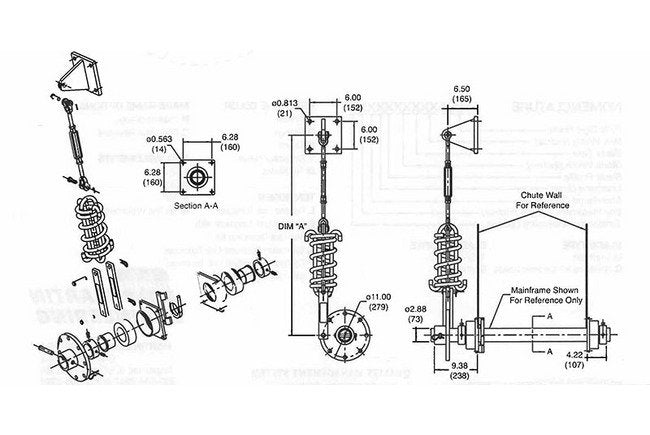

Dimensions Mounting Height A
47.00 in | 1194 mm
