MARTIN® Spiral Brush Belt Cleaner
MARTIN® Spiral Brush Belt Cleaner
SKU:BEL-2b0dcb
Enhance conveyor belt cleanliness with the MARTIN® Spiral Brush Belt Cleaner. Effective, efficient, and economical solution for removing residual materials from belts with cleats, chevrons, or ribs.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
MARTIN® Spiral Brush Belt Cleaner
$1,899.99
Quantity: 1
Claim Your Seller Account
MARTIN® Spiral Brush Belt Cleaner
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® Spiral Brush Belt Cleaner, part of the MARTIN® Brush Cleaners product line, is expertly engineered to effectively remove residual materials from conveyor belts. With a continuous spiral design wrapping bristles around the brush shaft, this cleaner ensures high-performance cleaning on dry fines clinging to belts with cleats, chevrons, or ribs. Key features include a 48-inch belt width, 2 HP electric motor, durable construction using angle iron and stainless steel components, and standard polypropylene bristles. It offers an efficient and economical solution for belt-borne residual material, with rugged construction that ensures long-lasting performance in tough conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Guidelines 0
Martin Engineering's Conveyor Belt Brush Cleaners are de signed for use in the secondary cleaning position. In other words, the recommended placement is at the point where the belt leaves the discharge pulley. (If that is not possible, the MARTIN® BRUSH Belt Cleaner may be mounted further along the conveyor's return run where it can be supported by an idler or pulley.) Installation of a precleaner on the face of the discharge pulley below the material stream is always recommended.
Benefits 0
Effective Cleaning Removes carryback fines and fibers with powered rotary action. Efficient Operation Efficient electric motor provides effective cleaning with out excessive power consumption. Economical SolutionEffective, yet low-cost answer to belt-borne residual material. Rugged ConstructionDurable angle iron and stainless steel components provide long service in tough conditions. High-Performance CleaningEffective cleaning performance on difficult applications, including belts with ribs, cleats, grooves, or chevrons, or belts carrying sticky materials or stringy fibers.

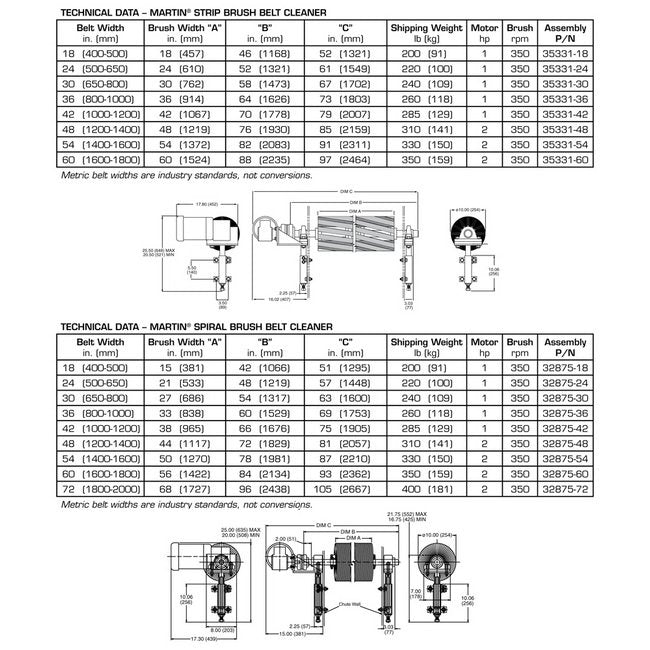

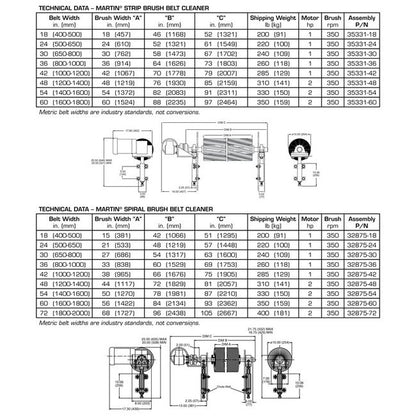

Dimensions Belt Width
48 in | 1200 to 1400 mm
Dimensions Brush Rotation Speed
350 rpm
Dimensions Brush Width A
44 in | 1117 mm
Dimensions Dimension B
72 in | 1829 mm
Dimensions Dimension C
81 in | 2057 mm
Dimensions Motor Hp
2
Dimensions Shipping Weight
310 lb | 141 kg
Specifications Electric Motor
230 / 460 V, 3-Phase, 60 Hz
Specifications Service Temperature
-20 to 180 ºF | -29 to 82 ºC
Specifications Speed Reducer
5:1 Reduction - 1 & 2 hp on MARTIN® Spiral and Strip Brush Belt Cleaners
Specifications Standard Bristle Diameter
0.038 in | 0.96 mm
Specifications Standard Bristle Length
4 in | 102 mm
Specifications Standard Bristle Material
Polypropylene
When To Use 0
Belts carrying dry, dusty, crumbled materials that read ily release from bristles. Available in "low-profile" version and in wider constructions for challenging applications.
