MARTIN® SQC2S™ Secondary Belt Cleaner

MARTIN® SQC2S™ Secondary Belt Cleaner

BEL-d5bad2

Efficiently clean conveyor belts with MARTIN® SQC2S™ - durable, precise, and cost-effective.

$799.99
$799.99
Sale

Initiate Order

MARTIN® SQC2S™ Secondary Belt Cleaner

MARTIN® SQC2S™ Secondary Belt Cleaner

$799.99

Quantity: 1

Claim Your Seller Account

MARTIN® SQC2S™ Secondary Belt Cleaner

MARTIN® SQC2S™ Secondary Belt Cleaner

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® SQC2S™ Secondary Belt Cleaner is a cutting-edge solution for effective belt cleaning with individually-cushioned tungsten carbide blades. Designed to maintain consistent cleaning pressure without risking belt damage, this cleaner features a compact design ideal for tight spaces. The orange mainframe, acid-resistant blades, and 316 stainless steel tensioner ensure durability and easy maintenance. With benefits like efficient cleaning, rugged construction, and suitability for various conditions, this cleaner is a reliable choice for reducing conveyor clean-up costs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Options Additional Options
Dust-Tight Steel Cover Door
Additional Options Tensioner Options
316 Stainless Steel Tensioner | No Tensioner | Tensioner Included
Benefits 0
Cushioned Blades Maintain EfficiencyPatented rubber buffers maintain cleaning pressure while deflecting to allow splices to pass.Built for Tough ConditionsRugged construction withstands punishing applications, like high-speed belts and high-tonnage loads. Easy Cartridge RemovalThe procedure is simple: remove pin, slide out car tridge, service, and return.Easy Adjustment of Cleaning PressureMARTIN® SQC2™ Tensioner allows simple alteration of blade-to-belt pressure to maintain cleaning efficiency regardless of blade wear. Lock pin keeps tensioner in place to maintain constant tension.Fits in Tight SpacesCompact design allows installation in close quarters; narrow profile resists material buildup.Blades to Match ApplicationSpecify tungsten carbide tips for normal, acidic, or high-impact conditions. Blades conform to belt profile by adjusting individually to provide continuous contact across the belt.Handles Reversing Belts and Belt RollbackRubber buffers allow for reversal of belt direction with out damage to belt.

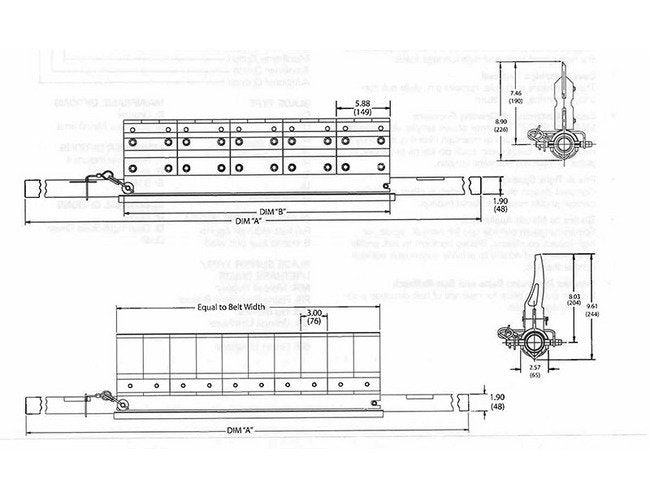

Dimensions Belt Cleaning Width
66 in | 1650 mm
Dimensions Belt Width
72 in | 1800 mm
Dimensions Blade Width B
64.96 in | 1650 mm
Dimensions Mainframe Length A
102.09 in | 2593 mm
Dimensions Of Blades Martin Saf 2 Blades
24
Dimensions Of Blades Martin Sqc2 Blades
11
Notes 0
ApplicationMartin Engineering recommends that the MARTIN® SQC2™ Secondary Belt Cleaner System be installed so the clean ing blade contacts the belt at a point 2 to 4 in. (51 to 102 mm) after the point where the belt leaves the head (discharge) pulley. If obstructions prevent installation at this point, or if additional cleaners are desired, the cleaner should be installed 2 to 4 in. (51 to 102 mm) past the point where the belt leaves the support idler.See your Martin Engineering representative for more infor mation, or visit www.martin-eng.com.
Specifications Blade Buffer Type Urethane Color
No Buffers
Specifications Blade Color
Orange
Specifications Blade Type
Acid-Resistant Belt w/ Clips
Specifications Mainframe Type
Orange Mainframe
