MARTIN® SQC2S™ Tungsten Carbide Secondary Cleaner

MARTIN® SQC2S™ Tungsten Carbide Secondary Cleaner

BEL-732bf4

Efficiently clean conveyor belts with MARTIN® SQC2S™ Tungsten Carbide Secondary Cleaner for consistent performance and minimal maintenance.

$499.99
$499.99
Sale

Initiate Order

MARTIN® SQC2S™ Tungsten Carbide Secondary Cleaner

MARTIN® SQC2S™ Tungsten Carbide Secondary Cleaner

$499.99

Quantity: 1

Claim Your Seller Account

MARTIN® SQC2S™ Tungsten Carbide Secondary Cleaner

MARTIN® SQC2S™ Tungsten Carbide Secondary Cleaner

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® SQC2S™ Tungsten Carbide Secondary Cleaner is designed for efficient belt cleaning without risking damage to the belt, splices, or blades. Featuring individually-cushioned tungsten carbide blades and rubber blade base buffers, this cleaner provides consistent cleaning pressure and easy maintenance. The compact design allows installation in tight spaces, while the blade cartridge enables quick removal for uninterrupted service. With options for 316 SS Tensioner and various blade types, this cleaner ensures optimal performance in diverse applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Options Additional Options
Dust-Tight Steel Cover Door
Additional Options Tensioner Options
316 Stainless Steel Tensioner | No Tensioner | Tensioner Included
Benefits 0
Cushioned Blades Maintain EfficiencyPatented rubber buffers maintain cleaning pressure while deflecting to allow splices to pass.Built for Tough ConditionsRugged construction withstands punishing applications, like high-speed belts and high-tonnage loads. Easy Cartridge RemovalThe procedure is simple: remove pin, slide out car tridge, service, and return.Easy Adjustment of Cleaning PressureMARTIN® SQC2™ Tensioner allows simple alteration of blade-to-belt pressure to maintain cleaning efficiency regardless of blade wear. Lock pin keeps tensioner in place to maintain constant tension.Fits in Tight SpacesCompact design allows installation in close quarters; narrow profile resists material buildup.Blades to Match ApplicationSpecify tungsten carbide tips for normal, acidic, or high-impact conditions. Blades conform to belt profile by adjusting individually to provide continuous contact across the belt.Handles Reversing Belts and Belt RollbackRubber buffers allow for reversal of belt direction with out damage to belt.

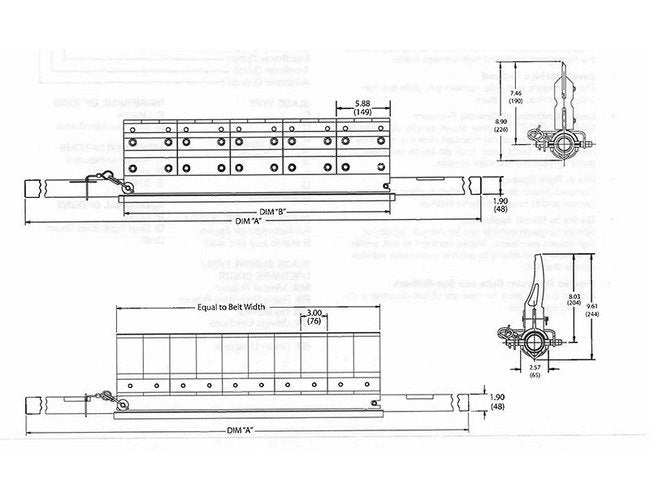

Dimensions Belt Cleaning Width
12 in | 300 mm
Dimensions Belt Width
18 in | 450 mm
Dimensions Blade Width B
11.81 in | 300 mm
Dimensions Mainframe Length A
48.94 in | 1243 mm
Dimensions Of Blades Martin Saf 2 Blades
6
Dimensions Of Blades Martin Sqc2 Blades
2
Notes 0
ApplicationMartin Engineering recommends that the MARTIN® SQC2™ Secondary Belt Cleaner System be installed so the clean ing blade contacts the belt at a point 2 to 4 in. (51 to 102 mm) after the point where the belt leaves the head (discharge) pulley. If obstructions prevent installation at this point, or if additional cleaners are desired, the cleaner should be installed 2 to 4 in. (51 to 102 mm) past the point where the belt leaves the support idler.See your Martin Engineering representative for more infor mation, or visit www.martin-eng.com.
Specifications Blade Buffer Type Urethane Color
Molded Rubber
Specifications Blade Type
Urethane
Specifications Mainframe Type
Stainless Mainframe
