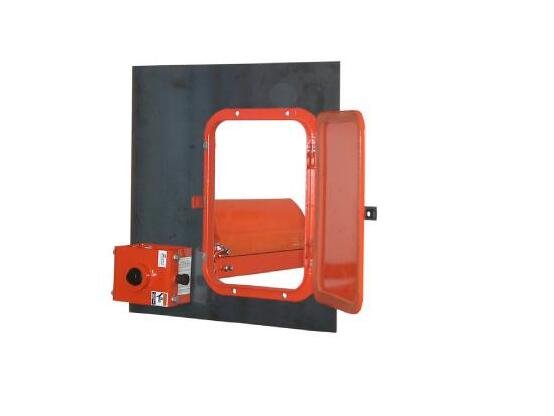

MARTIN® Steel Inspection Doors - Mild Steel Version
MARTIN® Steel Inspection Doors - Mild Steel Version
SKU:BEL-98850f
Durable MARTIN® Steel Inspection Doors with dust-tight seal and high-temperature resistance for easy access in conveyor systems.
Regular price
$399.00
Regular price
Sale price
$399.00
Unit price
per
Initiate Order
MARTIN® Steel Inspection Doors - Mild Steel Version
$399.00
Quantity: 1
Claim Your Seller Account
MARTIN® Steel Inspection Doors - Mild Steel Version
$399.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your conveyor system with MARTIN® Steel Inspection Doors made of durable painted mild steel. Featuring a dust-tight seal, low-profile design, and suitable for high temperatures up to 350°F (177°C), these doors provide easy access for inspection and service. With a door height of 1.79 inches (45 mm) and multiple sizes available, they are built to withstand tough conditions, offering simple installation and versatility for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Guidelines 0
Martin Engineering recommends a minimum door size of 12 x 14 in. (305 x 356 mm) for pre-cleaners12 x 18 in. (305 x 457 mm) for secondary cleaners Other options, including food-grade rubber and/or stainless steel frame are available. See your Martin Engineering representative.
Benefits 0
Dust-Tight SealRubber seal prevents material escape."Low-Profile" DesignDoor height of 1.79 inches (45 mm) with handle in latched position. Suitable for High TemperaturesRubber seal is suitable for temperatures up to 350°F (177°C). Built for Tough ConditionsSteel door withstands typical positive and negative pressure applications. Simple InstallationDoor can be bolted or welded to enclosure wall.Matches Your ApplicationSix sizes available, from 9 x 12 to 24 x 24 inches (229 x 305 to 610 x 610 mm).Extended-Height Door also available.
Dimensions Dimension A
20.25 in | 514 mm
Dimensions Dimension B
26.19 in | 665 mm
Dimensions Dimension C
17.25 in | 438 mm
Dimensions Dimension D
23.19 in | 589 mm
Dimensions Dimension E
4.56 in | 116 mm
Dimensions Dimension F
1 in | 25 mm
Dimensions Door Size Width X Height
18 x 24 in | 457 x 610 mm
Dimensions Shipping Weight
42 lb | 19 kg
Specifications Door Material
Painted Mild Steel
Specifications Lockable Latch
w/o Lockable Latch
Specifications Mounting Hardware
w/o Mounting Hardware
Specifications Safety Screen
w/o Safety Screen
