MARTIN® Strip Brush Belt Cleaner - Conveyor Cleaning Solution
MARTIN® Strip Brush Belt Cleaner - Conveyor Cleaning Solution
SKU:BEL-b2ea1a
Efficiently removes residual materials from conveyor belts with MARTIN® Strip Brush Belt Cleaner. Durable, high-performance cleaning solution for tough applications.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
MARTIN® Strip Brush Belt Cleaner - Conveyor Cleaning Solution
$2,399.99
Quantity: 1
Claim Your Seller Account
MARTIN® Strip Brush Belt Cleaner - Conveyor Cleaning Solution
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® Strip Brush Belt Cleaner by Martin Engineering is designed for efficient removal of residual materials from conveyor belts. With a continuous spiral bristle design wrapped around the brush shaft, this cleaner offers effective cleaning performance, especially on dry fines clinging to belts with cleats, chevrons, or ribs. It features a standard bristle diameter of 1mm with polypropylene material, ensuring durability and consistent cleaning results. Powered by a 2 HP electric motor with a brush rotation speed of 350 RPM, this cleaner efficiently removes carryback fines and fibers without excessive power consumption. Its rugged construction, including durable angle iron and stainless steel components, guarantees long service life in tough conditions.
Ready to Grow Without Cash Flow Constraints?

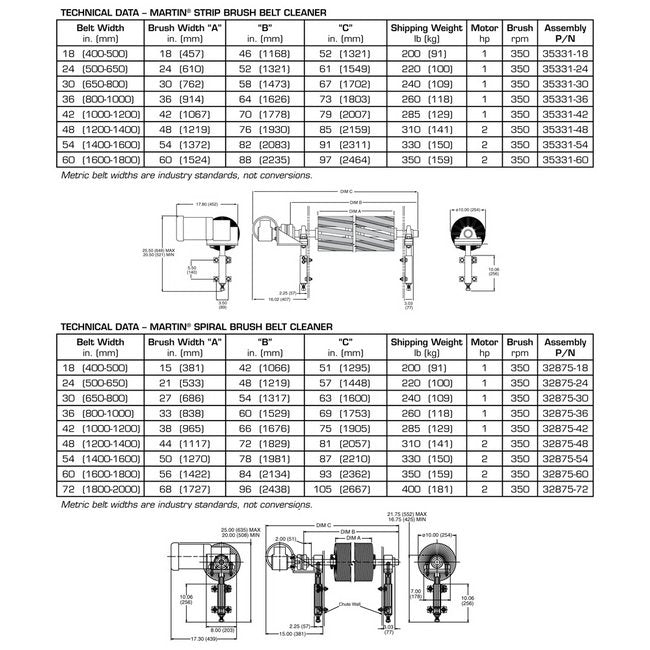

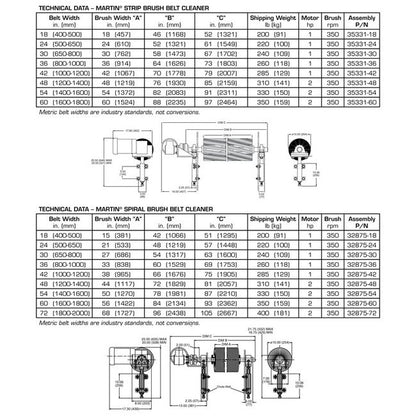

Product Specifications
Application Guidelines 0
Martin Engineering's Conveyor Belt Brush Cleaners are de signed for use in the secondary cleaning position. In other words, the recommended placement is at the point where the belt leaves the discharge pulley. (If that is not possible, the MARTIN® BRUSH Belt Cleaner may be mounted further along the conveyor's return run where it can be supported by an idler or pulley.) Installation of a precleaner on the face of the discharge pulley below the material stream is always recommended.
Benefits 0
Effective Cleaning Removes carryback fines and fibers with powered rotary action. Efficient Operation Efficient electric motor provides effective cleaning with out excessive power consumption. Economical SolutionEffective, yet low-cost answer to belt-borne residual material. Rugged ConstructionDurable angle iron and stainless steel components provide long service in tough conditions. High-Performance CleaningEffective cleaning performance on difficult applications, including belts with ribs, cleats, grooves, or chevrons, or belts carrying sticky materials or stringy fibers.
Dimensions Belt Width
54 in | 1400 to 1600 mm
Dimensions Brush Rotation Speed
350 rpm
Dimensions Brush Width A
54 in | 1372 mm
Dimensions Dimension B
82 in | 2083 mm
Dimensions Dimension C
91 in | 2311 mm
Dimensions Motor Hp
2
Dimensions Shipping Weight
330 lb | 150 kg
Specifications Electric Motor
230 / 460 V, 3-Phase, 60 Hz
Specifications Service Temperature
-20 to 180 ºF | -29 to 82 ºC
Specifications Speed Reducer
5:1 Reduction - 1 & 2 hp on MARTIN® Spiral and Strip Brush Belt Cleaners
Specifications Standard Bristle Diameter
0.040 in | 1 mm
Specifications Standard Bristle Length
3 in | 76 mm
Specifications Standard Bristle Material
Polypropylene
When To Use 0
Use for moist, clinging materials that cling to bristles and build up on brush shaft.
