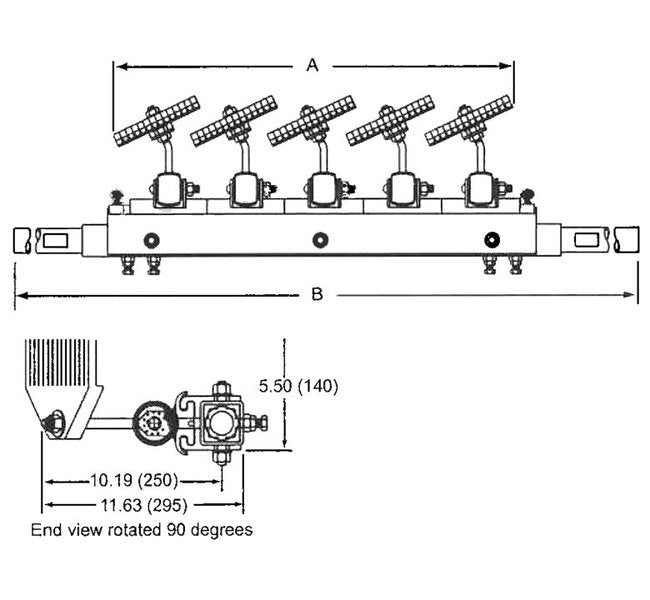

• MARTIN® TORSION ARM™ Chevron Belt Cleaner - Primary & Secondary Belt Cleaning Solution - Image 1
  • MARTIN® TORSION ARM™ Chevron Belt Cleaner - Primary & Secondary Belt Cleaning Solution - Image 2
  • MARTIN® TORSION ARM™ Chevron Belt Cleaner - Primary & Secondary Belt Cleaning Solution - Image 3
1 3
Airmatic →

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Primary & Secondary Belt Cleaning Solution

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Primary & Secondary Belt Cleaning Solution

BEL-4d4092

Efficiently remove carryback with MARTIN® TORSION ARM™ Chevron Belt Cleaner - Ideal for primary & secondary belt cleaning.

$749.99
$749.99
Sale

Initiate Order

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Primary & Secondary Belt Cleaning Solution

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Primary & Secondary Belt Cleaning Solution

$749.99

Quantity: 1

Claim Your Seller Account

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Primary & Secondary Belt Cleaning Solution

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Primary & Secondary Belt Cleaning Solution

$749.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® TORSION ARM™ Chevron Belt Cleaner is a versatile belt cleaning solution designed to efficiently remove carryback from belts with ribs, chevrons, and cleats. With 30° offset arms and urethane blades, this cleaner offers exceptional performance while gently gliding over belt structures. The telescoping ends eliminate the need for mainframe cutting during installation. Suitable for reducing conveyor clean-up costs, this cleaner is compatible with MARTIN® TWIST™ Tensioner for optimal performance and blade longevity. Its durable construction and specialized design make it a reliable choice for both primary and secondary belt cleaning applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Belt Width
36 in | 800 to 1000 mm
Dimensions Blade Width A
30.5 in | 775 mm
Dimensions Max Mainframe Length
67 in | 1702 mm
Dimensions Of Blades
5
Dimensions Shipping Weight
78 lb | 35.40 kg
Specifications Arm Angle
Right
Specifications Blade Type
Urethane
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
MARTIN® TWIST™ Tensioner
Specifications Urethane Color
Tan
