Matryx® Vane Actuator MX - Compact and Powerful 180º Movement
Matryx® Vane Actuator MX - Compact and Powerful 180º Movement
SKU:ACT-3ee293
Experience powerful actuation & precise control with Matryx® Vane Actuator MX.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Matryx® Vane Actuator MX - Compact and Powerful 180º Movement
$899.99
Quantity: 1
Claim Your Seller Account
Matryx® Vane Actuator MX - Compact and Powerful 180º Movement
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

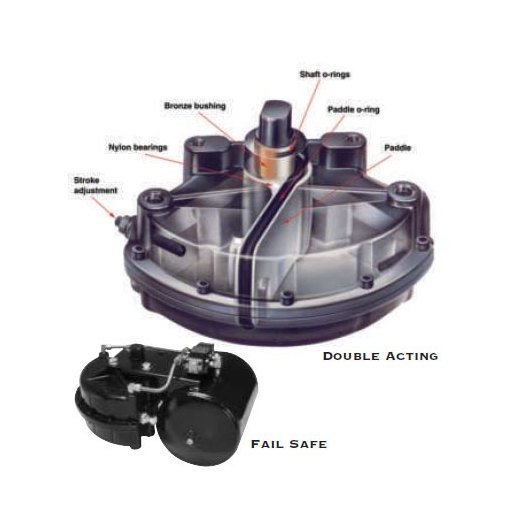

The Matryx® Vane Actuator MX offers exceptional performance with double-acting and fail-safe options. Crafted from durable die-cast aluminum, it operates at pressures of 40 to 120 PSIG and temperatures ranging from 0°F to 225°F. With a compact design and only one moving part, this vane actuator features dual external travel stops for precise rotation adjustment. Additional options like Limit Switch, Locking Device, and Solenoid Valve enhance its versatility for various applications.

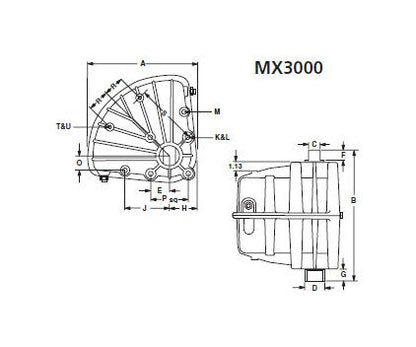

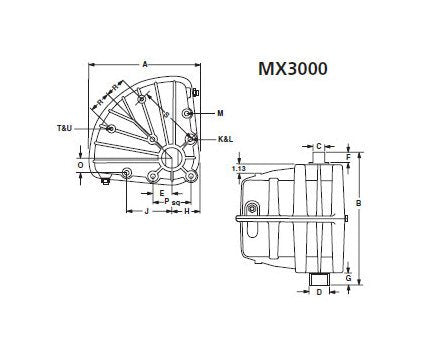

Product Specifications
Specifications Dimension A
13.62 in | 346 mm
Specifications Dimension B
16.63 in | 422 mm
Specifications Dimension C
1.50 in | 38.1 mm
Specifications Dimension D
2.50 in | 63.4 mm
Specifications Dimension E
2.30 in | 58 mm
Specifications Dimension F
1.31 in | 33 mm
Specifications Dimension G
1.56 in | 39 mm
Specifications Dimension H
3.46 in | 88 mm
Specifications Dimension J
5.50 in | 140 mm
Specifications Dimension K
3/4-10
Specifications Dimension L
1.50 in | 38 mm
Specifications Dimension M
3/8-18
Specifications Dimension O
1.88 in | 48 mm
Specifications Dimension P
4.60 in | 117 mm
Specifications Dimension R
2.63 in | 67 mm
Specifications Dimension S
7.69 in | 195 mm
Specifications Dimension T
1/2-13
Specifications Dimension U
0.56 in | 14 mm
Specifications Quantity Of K
4
Specifications Quantity Of M
4
Specifications Quantity Of T
2
Specifications Weight
65.0 lb | 29.6 kg
