Matryx Vane Actuator MX
Matryx Vane Actuator MX
SKU:ACT-9dcd84
Experience powerful and precise actuation with the Matryx® Vane Actuator MX. Ideal for institutions and consumers, this compact and lightweight design offers exceptional reliability and flexibility in operation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Matryx Vane Actuator MX
$299.99
Quantity: 1
Claim Your Seller Account
Matryx Vane Actuator MX
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

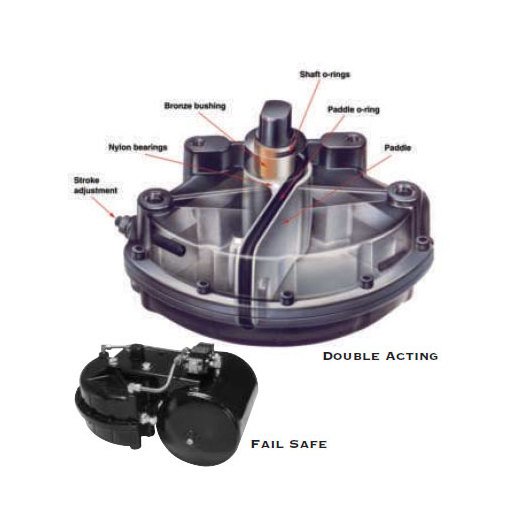

The Matryx® Vane Actuator MX offers reliable double-acting and fail-safe options, with a sturdy die-cast aluminum housing. Operating at 40 to 120 PSIG and a temperature range of 0°F to 225°F, this compact and lightweight actuator features innovative dual external travel stops for precise rotation adjustment. Equipped with optional features like limit switches, locking devices, and solenoid valves, it ensures efficient performance and seamless integration into various systems.

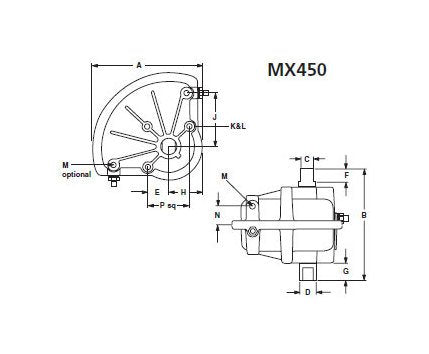

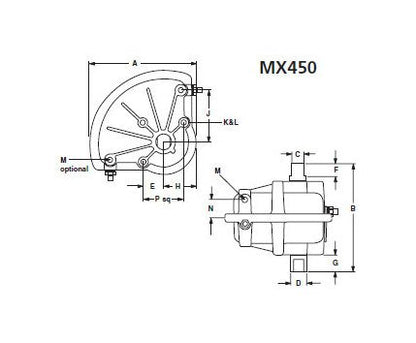

Product Specifications
Specifications Dimension A
9.25 in | 235 mm
Specifications Dimension B
9.56 in | 243 mm
Specifications Dimension C
1.12 in | 28.6 mm
Specifications Dimension D
1.44 in | 36.5 mm
Specifications Dimension E
1.75 in | 44 mm
Specifications Dimension F
1.13 in | 29 mm
Specifications Dimension G
1.50 in | 38 mm
Specifications Dimension H
2.88 in | 74 mm
Specifications Dimension J
4.63 in | 118 mm
Specifications Dimension K
1/2-13
Specifications Dimension L
0.81 in | 21 mm
Specifications Dimension M
1/4-18
Specifications Dimension N
1.63 in | 41 mm
Specifications Dimension P
3.50 in | 89 mm
Specifications Quantity Of K
3
Specifications Quantity Of M
4
Specifications Weight
14.0 lb | 6.4 kg
