Matryx® Vane Actuator MX - Compact Double-Acting Solution
Matryx® Vane Actuator MX - Compact Double-Acting Solution
SKU:ACT-7ad930
Precise valve control in a compact, lightweight design. Customizable with versatile options. Ideal for institutional and consumer applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Matryx® Vane Actuator MX - Compact Double-Acting Solution
$899.99
Quantity: 1
Claim Your Seller Account
Matryx® Vane Actuator MX - Compact Double-Acting Solution
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

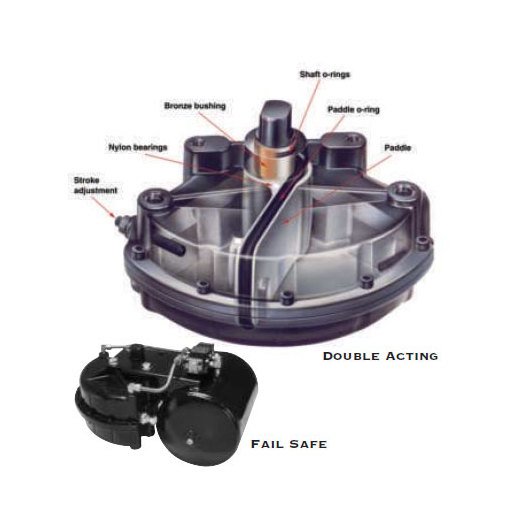

The Matryx® Vane Actuator MX offers a versatile solution for precise valve control with options for Double Acting and Fail Safe versions. Crafted from robust die-cast aluminum, this actuator operates efficiently within a pressure range of 40 to 120 PSIG and a wide temperature span of 0ºF to 225ºF. Its compact design with only one moving part ensures powerful actuation while being lightweight. Dual external travel stops allow easy rotation adjustment, and Fail Safe models ensure valve closure in case of supply pressure loss. With optional features like Limit Switch, Locking Device, and more, this actuator is customizable to meet diverse application needs.

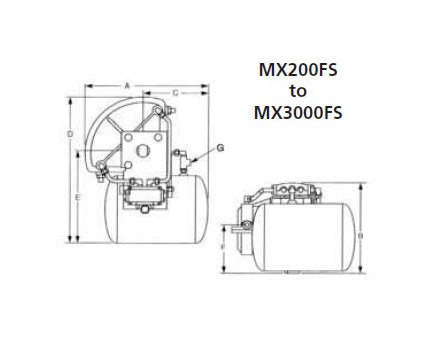

Product Specifications
Specifications Dimension A
14.69 in | 373 mm
Specifications Dimension B
9.93 in | 245 mm
Specifications Dimension C
8.00 in | 203 mm
Specifications Dimension D
16.88 in | 429 mm
Specifications Dimension E
10.50 in | 267 mm
Specifications Dimension F
4.38 in | 111 mm
Specifications Dimension G
1/4-18 NPT
Specifications Tank Volume
302 in³
Specifications Weight
28.0 lb | 13.0 kg
