Matryx® Vane Actuator MX - High Performance Actuator for Precision Control

Matryx® Vane Actuator MX - High Performance Actuator for Precision Control

ACT-337b1e

Powerful Matryx® Vane Actuator MX for industrial precision control. Die-cast aluminum housing, fail-safe models, and optional features for customization.

$899.99
$899.99
Sale

Initiate Order

Matryx® Vane Actuator MX - High Performance Actuator for Precision Control

Matryx® Vane Actuator MX - High Performance Actuator for Precision Control

$899.99

Quantity: 1

Claim Your Seller Account

Matryx® Vane Actuator MX - High Performance Actuator for Precision Control

Matryx® Vane Actuator MX - High Performance Actuator for Precision Control

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

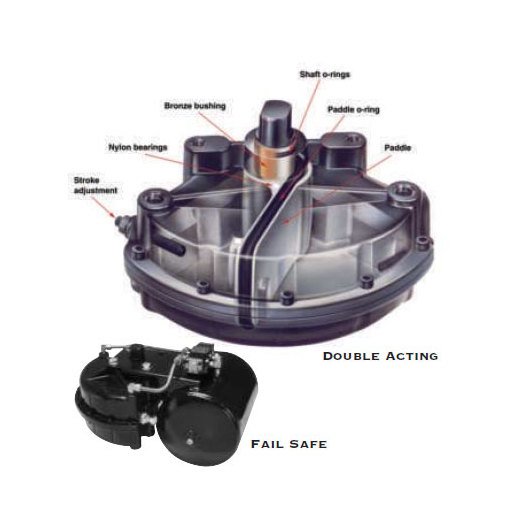

The Matryx® Vane Actuator MX offers exceptional performance for industrial applications. Available in Double Acting and Fail Safe versions, this actuator features a robust die-cast aluminum housing, operating pressure range of 40 to 120 PSIG, and a wide temperature range of 0ºF to 225ºF. With powerful actuation in a compact design, it boasts dual external travel stops for precise rotation adjustment, along with fail-safe models for reliable valve closure during pressure loss. Optional features include limit switches, locking devices, and solenoid valves, making it customizable for various requirements.

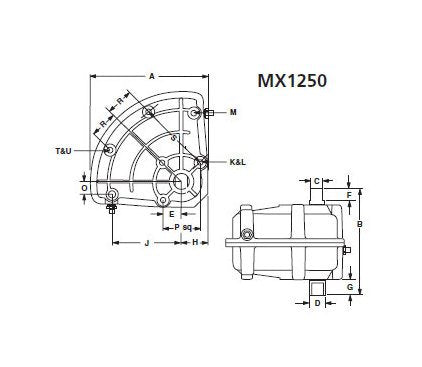

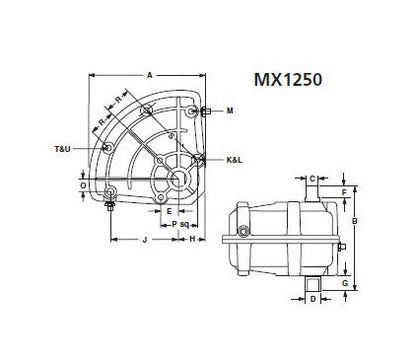

Product Specifications

Specifications Dimension A
10.88 in | 276 mm
Specifications Dimension B
10.00 in | 254 mm
Specifications Dimension C
1.13 in | 28.6 mm
Specifications Dimension D
1.44 in | 36.6 mm
Specifications Dimension E
1.75 in | 44 mm
Specifications Dimension F
1.13 in | 29 mm
Specifications Dimension G
1.50 in | 38 mm
Specifications Dimension H
2.50 in | 63 mm
Specifications Dimension J
6.38 in | 162 mm
Specifications Dimension K
1/2-13
Specifications Dimension L
0.62 in | 16 mm
Specifications Dimension M
3/8-18
Specifications Dimension O
1.19 in | 30 mm
Specifications Dimension P
3.50 in | 89 mm
Specifications Dimension R
2.50 in | 63 mm
Specifications Dimension S
6.63 in | 168 mm
Specifications Dimension T
1/2-13
Specifications Dimension U
0.62 in | 16 mm
Specifications Quantity Of K
3
Specifications Quantity Of M
4
Specifications Quantity Of T
2
Specifications Weight
22.0 lb | 10.0 kg
