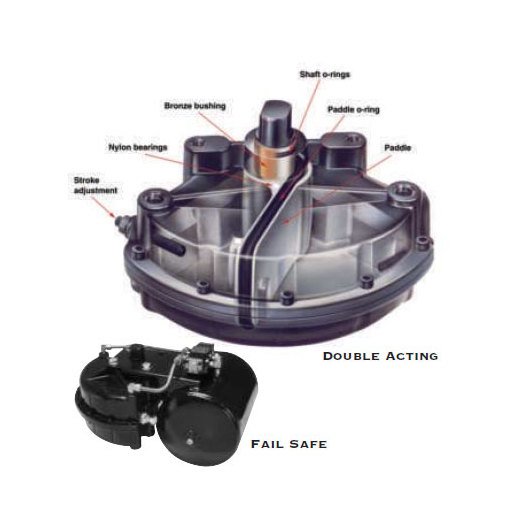

The Matryx® Vane Actuator MX offers exceptional performance for both standard and fail-safe operations. Crafted from die-cast aluminum, this compact and lightweight actuator operates at pressures ranging from 40 to 120 PSIG with a temperature range of 0ºF to 225ºF. With dual external travel stops, it allows rotation adjustment of up to ±10º at each end of the stroke. The fail-safe models ensure valve closure on loss of supply pressure, while optional features like limit switches, locking devices, and solenoid valves enhance functionality. Ideal for precise control in various applications, this actuator is designed to meet the stringent standards of institutional and government procurement.

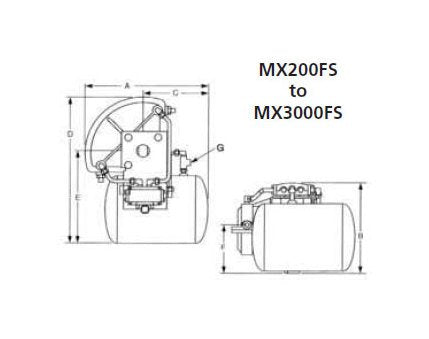

Product Specifications
Specifications Dimension A
22.38 in | 568 mm
Specifications Dimension B
16.68 in | 424 mm
Specifications Dimension C
10.13 in | 257 mm
Specifications Dimension D
26.18 in | 665 mm
Specifications Dimension E
16.00 in | 406 mm
Specifications Dimension F
8.38 in | 213 mm
Specifications Dimension G
1/4-18 NPT
Specifications Tank Volume
1963 in³
Specifications Weight
102.0 lb | 47.0 kg
