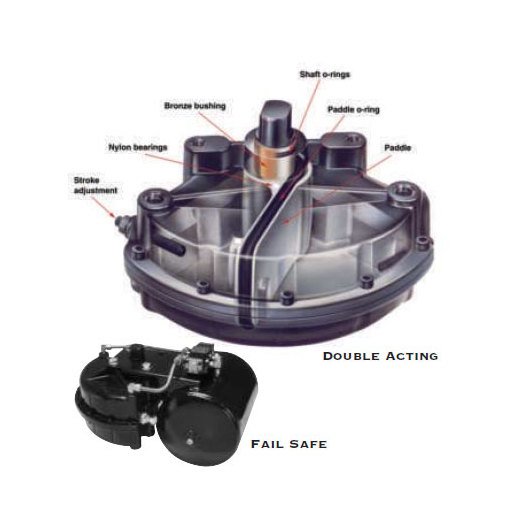

The Matryx® Vane Actuator MX delivers exceptional performance for industrial applications. With options for Double Acting and Fail Safe versions, this compact and lightweight actuator is constructed from durable die-cast aluminum, ensuring reliable operation under pressures ranging from 40 to 120 PSIG. Featuring a broad temperature range from 0ºF to 225ºF, this actuator comes with dual external travel stops allowing rotation adjustment of up to ±10º at each end of the stroke. Its fail-safe models use a pneumatic accumulator for reliable valve closure during supply pressure loss. Enhance your system with optional features like Limit Switch, Locking Device, Solenoid Valve, and more for tailored performance.

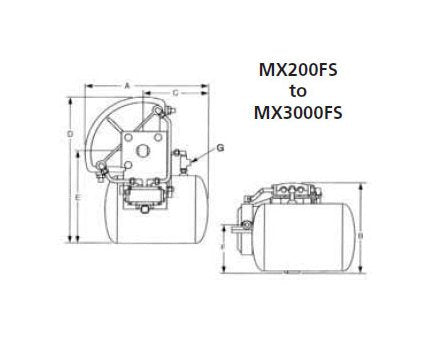

Product Specifications
Specifications Dimension A
11.75 in | 298 mm
Specifications Dimension B
7.63 in | 194 mm
Specifications Dimension C
6.88 in | 175 mm
Specifications Dimension D
13.63 in | 347 mm
Specifications Dimension E
8.81 in | 224 mm
Specifications Dimension F
3.63 in | 92 mm
Specifications Dimension G
1/4-18 NPT
Specifications Tank Volume
95 in³
Specifications Weight
24.0 lb | 11.0 kg
