Matryx® Vane Actuator MX - Precision Control Actuator for Industrial Applications
Matryx® Vane Actuator MX - Precision Control Actuator for Industrial Applications
SKU:ACT-604423
Experience precision control with the Matryx® Vane Actuator MX. Durable, compact, and reliable for industrial needs.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Matryx® Vane Actuator MX - Precision Control Actuator for Industrial Applications
$699.99
Quantity: 1
Claim Your Seller Account
Matryx® Vane Actuator MX - Precision Control Actuator for Industrial Applications
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

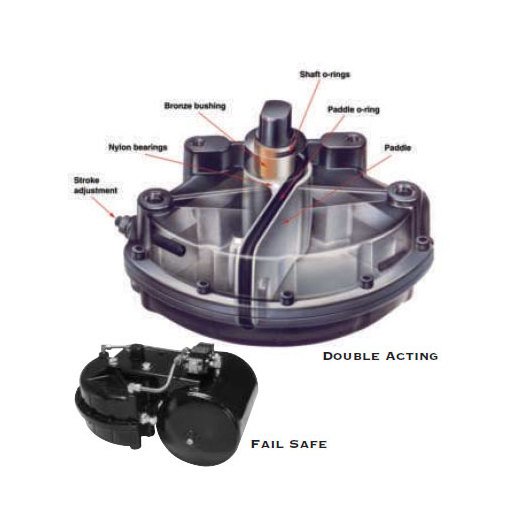

The Matryx® Vane Actuator MX offers unparalleled precision and reliability in industrial applications. With options for Double Acting and Fail Safe versions, this actuator features a durable die-cast aluminum housing and operates at a pressure range of 40 to 120 PSIG. Its compact design, with only one moving part, ensures powerful actuation while remaining lightweight. The dual external travel stops allow for rotation adjustments, and Fail Safe models come equipped with a pneumatic accumulator for valve closure in the event of supply pressure loss. Optional features like Limit Switch, Locking Device, and Solenoid Valve enhance its functionality, making it a versatile solution for various settings.

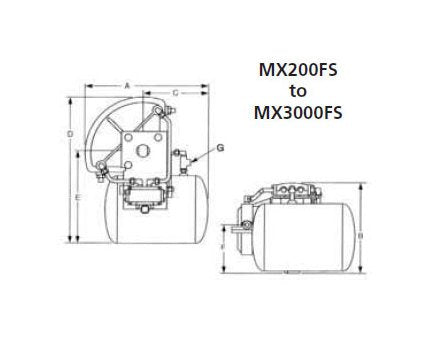

Product Specifications
Specifications Dimension A
14.75 in | 375 mm
Specifications Dimension B
10.50 in | 267 mm
Specifications Dimension C
8.00 in | 203 mm
Specifications Dimension D
18.68 in | 475 mm
Specifications Dimension E
12.00 in | 305 mm
Specifications Dimension F
4.25 in | 108 mm
Specifications Dimension G
1/4-18 NPT
Specifications Tank Volume
542 in³
Specifications Weight
37.0 lb | 17.0 kg
