Matryx® Vane Actuator MX with Fail Safe Option
Matryx® Vane Actuator MX with Fail Safe Option
SKU:ACT-c59fe9
Explore the Matryx® Vane Actuator MX for precise actuation in a lightweight design, meeting strict institutional procurement requirements.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Matryx® Vane Actuator MX with Fail Safe Option
$799.99
Quantity: 1
Claim Your Seller Account
Matryx® Vane Actuator MX with Fail Safe Option
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

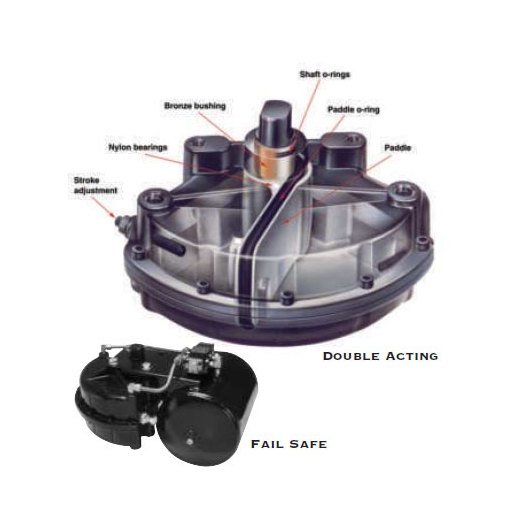

The Matryx® Vane Actuator MX offers exceptional performance for both consumer and institutional needs. Available in double-acting and fail-safe versions, this compact yet powerful actuator features a die-cast aluminum housing, operating pressure range of 40 to 120 PSIG, and a temperature range of 0ºF to 225ºF. With dual external travel stops allowing rotation adjustments, fail-safe models ensure valve closure upon supply pressure loss. Optional features like limit switches, solenoid valves, and PTFE interior coatings enhance functionality, making it ideal for various applications while meeting stringent procurement standards.

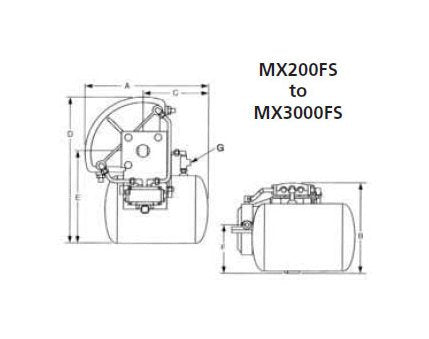

Product Specifications
Specifications Dimension A
21.00 in | 534 mm
Specifications Dimension B
10.88 in | 276 mm
Specifications Dimension C
12.50 in | 318 mm
Specifications Dimension D
20.38 in | 518 mm
Specifications Dimension E
12.00 in | 305 mm
Specifications Dimension F
3.75 in | 95 mm
Specifications Dimension G
1/4-18 NPT
Specifications Tank Volume
634 in³
Specifications Weight
40.0 lb | 18.0 kg
