Mattei ERC 20 HP Stacked Air Compressor System
Mattei ERC 20 HP Stacked Air Compressor System
SKU:MAT-50705e
Reliable Mattei ERC 20 HP Stacked Air Compressor with energy-efficient rotary vane technology for industrial applications.
Regular price
$11,499.99
Regular price
Sale price
$11,499.99
Unit price
per
Initiate Order
Mattei ERC 20 HP Stacked Air Compressor System
$11,499.99
Quantity: 1
Claim Your Seller Account
Mattei ERC 20 HP Stacked Air Compressor System
$11,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mattei ERC 20 HP Stacked System Air Compressor offers exceptional durability and efficiency suitable for demanding industrial applications. Built to last with Mattei's rotary vane technology, this compressor ensures constant top performance, unmatched reliability, and low energy consumption. With a 10-year warranty and compliance with CAGI and ISO 9001:2001 standards, this compressor delivers pulse-free air, compact design, and quiet operation, making it a valuable investment for long-term use.
Product Specifications
Additional Information 0
Why Mattei is your best choiceMattei compressors are designed to give constant top performance 24 hours a day, every day of the year. Extremely rugged and reliable, ERC Series is designed for outstanding durability and value.Rely on Mattei ERC Series for:Unaltered performance through timeNo wear of the compressor’s moving mechanical partsSystem friendly demand adaptable controlsAutomatic Load/No LoadLoad matching ModulationAutomatic with ModulationPulse-free airCompact designLow oil volume and consumptionDirect coupled compressor and motorSlow 1,800 RPM rotational speedLow maintenanceQuiet operation
Best Choice For Value And Durability 0
We Build a Better Compressor. Enea Mattei® believed there was a better and more energy efficient way to generate compressed air. So, he focused his engineering on the inherent advantages of rotary vane technology and engineered in:Superior reliability,Maximum mechanical & electrical efficiencyThe most compressed air generated while consuming the least amount of electricity.In effect, Mattei®redefined the process of compressing air when he invented his first rotary vane air compressor over 50 years ago.
High Quality Compressed Air 0

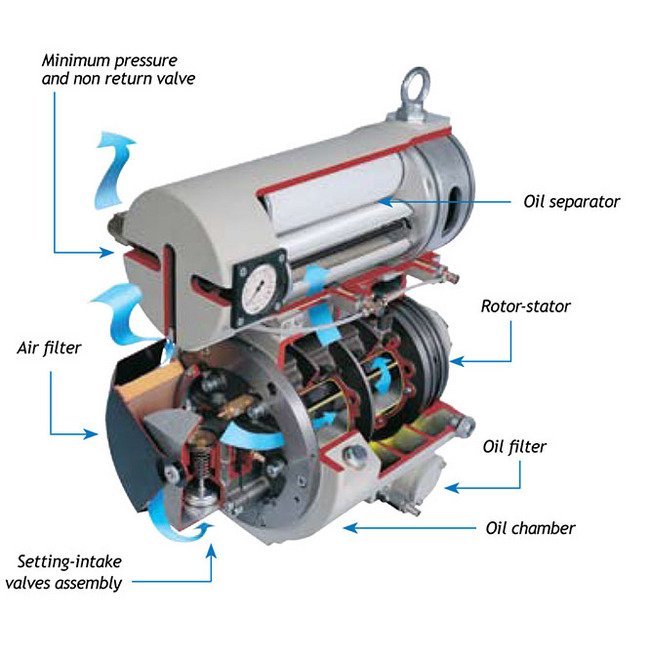

Mattei compressors have an exclusive and efficient oil separating system which occurs in three stages: in the initial stage most of the oil is separated in a labyrinth in the compression chamber; the flow then enters the separator chamber where a mechanical separation takes place through speed reduction and flow deviation; the last phase occurs through the separator element. Only 0.02% of the initial oil arrives to this final stage; this is the reason for which the average life of Mattei's separator element is 10,000 operating hours. Most importantly, this separating system guarantees a maximum oil residue of 3 ppm in Mattei®'s compressed air.
How It Works 0

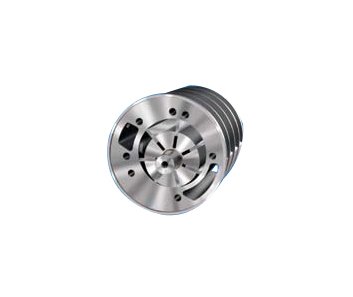

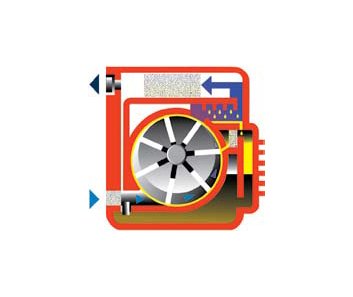

Ambient air is drawn through a filter into the compression chamber consisting of a stator in which an eccentrically arranged rotor revolves at 1,800 rpm. An air intake valve automatically adjusts incoming air volume to match your control scheme. The rotor has longitudinal slots in which the vanes slide. Zero-wear vanes ride on a thin film of oil and are held against the stator by centrifugal force. The air is compressed through the contraction in volume of each chamber formed by the vanes, the rotor and the stator wall. Sealing, cooling and lubrication are ensured by the oil injected into the chamber.
Note 0
Contact factory for higher pressures.Mattei Compressors, Inc. reserves the right to change or replace the data contained in this publication, without notice.
Specifications Brand
Mattei
Specifications Industry Standards
CAGI Compressed Air and Gas Institute® | ISO 9001:2001
Specifications Warranty
10 years
Stack The Deck In Your Favor 0

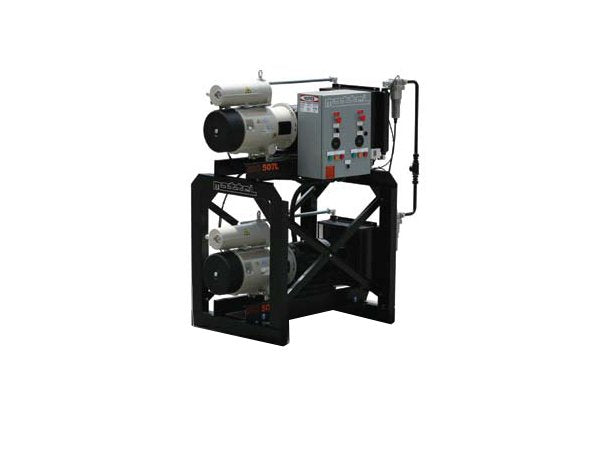

Inherently quiet and compact, Mattei® offers customers Stacked Systems™ that save you big on energy costs and uses half the floor space. Stacked Systems are an ideal alternative to VSD controlled compressors like our OPTIMA Series if your shop operates multiple shifts and/ or has a variety of tools or equipment that runs intermittently causing you to experience large swings in air demand. System rated from 10 thru 40 hp, you can mix or match machines. Matched systems from two 5 hp units to 20 hp or, mix combinations such as 5/7.5 hp, 10/15 hp, 10/20 hp, 15/20 hp.Energy saving Stacked Systems are your best solution for flexibility and saving energy.
Technical Specification Air Outlet Connection Size
3/4 in
Technical Specification Air Outlet Connection Type
National Pipe Thread (NPT)
Technical Specification Alternating Current Ac Voltage
208 to 230 V | 460 V | 575 V
Technical Specification Capacity
125 psig | 75 ft³/min
Technical Specification Flow Rate
5 to 460 scfm
Technical Specification Frequency
60 Hz
Technical Specification Model Type
Stacked System
Technical Specification Motor Power
20 hp | 15 kW
Technical Specification Motor Type
Totally Enclosed Fan Cooled (TEFC)
Technical Specification Net Weight
1250 lb
Technical Specification Note For Capacity
F.A.D. in accordance with ISO 1217:1996, annex "C"
Technical Specification Note For Motor Type
575 V only available TEFC.
Technical Specification Note For Stacked System Models
Automatic lead/lag and alternation standard on Stacked Systems. Switchover can occur each time lead machine times out, or at 24 hour intervals.
Technical Specification Number Of Air Outlet Connection
2
Technical Specification Number Of Motor
2
Technical Specification Phase
3
Technical Specification Sound Pressure Level
78 dBA
Technical Specification Speed
1800 rpm
Technical Specification Total Capacity
150 ft³/min
Technical Specification Total Motor Power
40 hp | 30 kW
Technical Specification Working Pressure At 115 Psig Rating Unit
109 psig
Technical Specification Working Pressure At 125 Psig Rating Unit
117 psig
Technical Specification Working Pressure At 150 Psig Rating Unit
143 psig
Unrivaled Performance And Durability 0
Today, Mattei continues to leverage advancements in technology and materials to offer the best value in premium quality air compressors found anywhere on the planet.Imagine “bearingless” Airends that last up to 100,000 hours (2-3 times the life of rotary screws) without needing an overhaul, unrivaled super quiet operation, and the most energy stingy designs in the industry.It’s a fact; Mattei is in a class of its own. Want to protect productivity, increase profitability, and lessen your carbon footprint?Get your last air compressor first. Get a Mattei .
Value Proposition 0
You get what you pay forIt is not uncommon to get over 100,000 hours of service life out of our airends without a rebuild. Mattei vane technology features zero-wear Meehanite™ cast iron blades that ride on a thin film of lubricant thus, preventing wear to the blade or stator wall. The heart of the unit is the rotor which is supported by two (2) white metal Babbitt bushings and spins at only 1,800 rpm.ERC Series is also friendly to your wallet and the environment. Each vane unit holds very little lubricant (typically less than half that of a screw type compressor) which saves you a small fortune on oil changes and disposal costs. The oil filter is cleanable - yes, cleanable. The highly efficient mechanical air/oil separation chamber delivers high-quality air to the air/oil separator filter thus, it sees very little lubricant and provides up to 10,000 hours of service, and low 1-3 ppm oil carryover.Get your money’s worth. Get a Mattei .
