Matthews ACIS Ink System

Matthews ACIS Ink System

SKU:AGI-3948ea

Achieve precise, permanent markings on uncured rubber with Matthews ACIS Ink System. Superior reliability, low maintenance, and exceptional print quality.

Regular price $7,500.00
Regular price Sale price $7,500.00
Sale

Initiate Order

Matthews ACIS Ink System

Matthews ACIS Ink System

$7,500.00

Quantity: 1

Claim Your Seller Account

Matthews ACIS Ink System

Matthews ACIS Ink System

$7,500.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Matthews ACIS Ink System is a high-performance solution designed for uncured rubber printing applications. With a curable rubber marking ink that is HAPs-free and fast-dry, this system ensures permanent, high-contrast marking without transfer or shadowing. Featuring the exclusive 8000+ maxi-valve printhead technology, it offers exceptional reliability, low ink consumption, and impressive print quality. From real-time information to variable codes, this system enhances traceability and limits coding errors, making it ideal for industrial environments.

Product Specifications

Additional Information Additional Information
It also features Matthews exclusive 8000+ maxi-valve printhead technology, the most reliable drop-on-demand system in the industry, providing tremendous reliability, easy maintenance, and dramatically lower ink consumption:6 billion cycles before retuning, outlasting the competitionHigher operating pressure reduces potential printhead clogging issuesImpressive print quality and speed capabilityMaximum number of print heads:Maximum 64 Valves, using two 16, or two 32 valve 8000+ Series PrintheadsConfigured for pigmented heptane based inkOutput/Input: Print trigger circuit offered to halt print 30 minutes after low ink detected or to send low ink output to PLC

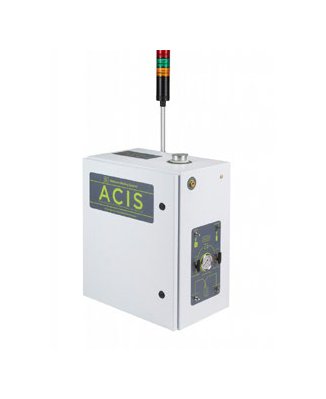

Agitating And Circulating Ink System Acis Warning Beacon Agitati
Green: Normal Running ConditionRed: Low Ink LevelFlashing Red: Warning that low ink level has not been correctedYellow: High Ink Level-too much ink has been added; overfill situation

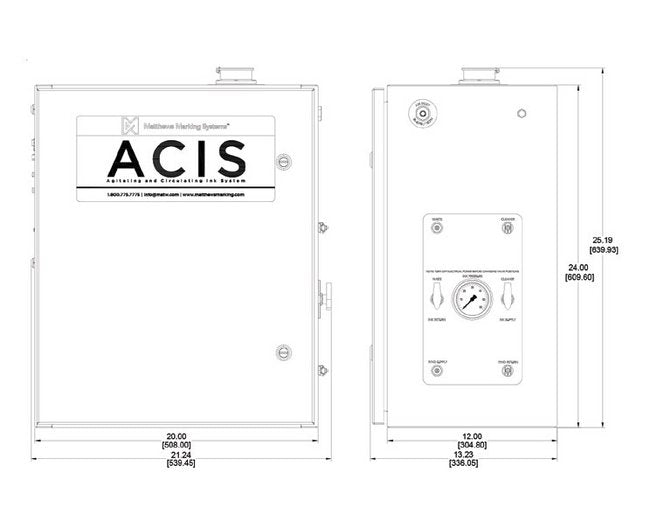

Cabinet Dimensions Cabinet Depth
13.25 in
Cabinet Dimensions Cabinet Height
25.5 in
Cabinet Dimensions Cabinet Width
21.25 in
Cabinet Dimensions Note For Cabinet Dimensions
Approximate; includes door and filler tube cap
Features Features
Prints real time information, variable text, graphics, barcodes, and 2D codesImproves traceability and limits the potential to incorrectly code productsEasily interfaces with PLC or network controlsReduces maintenance required to clean and maintain equipmentPerforms reliably, even in the harshest environmentsEliminates damages to the rubber with no contact
Inks Inks
Unlike many of our competitors, Matthews formulates and produces the ink used in our inkjet print technology. By choosing Matthews for printers and consumables, you benefit from one supplier, one source, one partner.
Technical Specs Air Flow
1 scfm | 0.47 L/s
Technical Specs Air Pressure
30 to 40 psi | 2.76 bar
Technical Specs Alternating Current Ac External Input Power Volt
100 to 240 V
Technical Specs Approximate Cabinet Weight
82 lb | 37.2 kg
Technical Specs Current
2 A
Technical Specs Direct Current Dc Output Power Voltage
24 V
Technical Specs Frequency
50 to 60 Hz
Technical Specs Ink Reservoir Capacity
4 L | 135.26 oz
Technical Specs Ink Supply Pressure Factory Set For
15 psi | 1 bar
Technical Specs Line Of Print
0 to 5
Technical Specs Maximum Image Size
5 in | 127 mm
Technical Specs Maximum Power
90 W
Technical Specs Maximum Print Distance
1/2 in | 12.7 mm
Technical Specs Maximum Speed
780 ft/min | 3.96 m/s
Technical Specs Minimum Character Size
1/4 in | 6.35 mm
Technical Specs Non Condensing Relative Humidity Rh
10 to 85 %
Technical Specs Note For Utilities Required
Clean, dry air-an air filter/regulator kit is available as an option
Technical Specs Operating Temperature
41 to 113 ºF | 5 to 45 ºC
Technical Specs Output Current
3.75 A
Technical Specs Printhead Voltage
32 V
