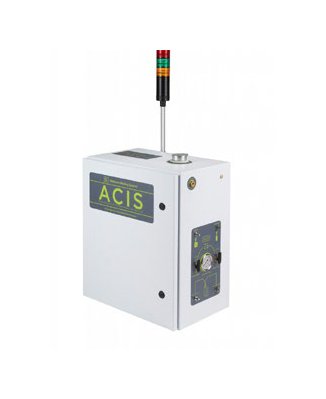

The Matthews ACIS Ink System is a cutting-edge solution designed for high-contrast, permanent marking on uncured rubber, ideal for tire and tread marking applications. Featuring a curable rubber marking ink that is fast-drying and Hazardous Air Pollutant (HAPs) free, this system eliminates transfer or shadowing in the mold. With a robust build and Matthews exclusive 8000+ maxi-valve printhead technology, this system offers unmatched reliability, easy maintenance, and superior ink consumption efficiency.
Product Specifications
Additional Information Additional Information
It also features Matthews exclusive 8000+ maxi-valve printhead technology, the most reliable drop-on-demand system in the industry, providing tremendous reliability, easy maintenance, and dramatically lower ink consumption:6 billion cycles before retuning, outlasting the competitionHigher operating pressure reduces potential printhead clogging issuesImpressive print quality and speed capabilityMaximum number of print heads:Maximum 64 Valves, using two 16, or two 32 valve 8000+ Series PrintheadsConfigured for pigmented heptane based inkOutput/Input: Print trigger circuit offered to halt print 30 minutes after low ink detected or to send low ink output to PLC
Agitating And Circulating Ink System Acis Warning Beacon Agitati
Green: Normal Running ConditionRed: Low Ink LevelFlashing Red: Warning that low ink level has not been correctedYellow: High Ink Level-too much ink has been added; overfill situation

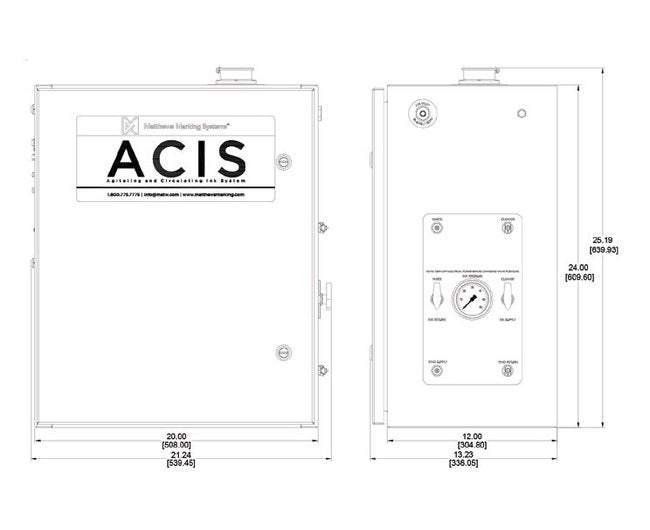

Cabinet Dimensions Cabinet Depth
13.25 in
Cabinet Dimensions Cabinet Height
25.5 in
Cabinet Dimensions Cabinet Width
21.25 in
Cabinet Dimensions Note For Cabinet Dimensions
Approximate; includes door and filler tube cap
Features Features
Prints real time information, variable text, graphics, barcodes, and 2D codesImproves traceability and limits the potential to incorrectly code productsEasily interfaces with PLC or network controlsReduces maintenance required to clean and maintain equipmentPerforms reliably, even in the harshest environmentsEliminates damages to the rubber with no contact
Inks Inks
Unlike many of our competitors, Matthews formulates and produces the ink used in our inkjet print technology. By choosing Matthews for printers and consumables, you benefit from one supplier, one source, one partner.
Technical Specs Air Flow
1 scfm | 0.47 L/s
Technical Specs Air Pressure
30 to 40 psi | 2.76 bar
Technical Specs Alternating Current Ac External Input Power Volt
100 to 240 V
Technical Specs Approximate Cabinet Weight
82 lb | 37.2 kg
Technical Specs Current
2 A
Technical Specs Direct Current Dc Output Power Voltage
24 V
Technical Specs Frequency
50 to 60 Hz
Technical Specs Ink Reservoir Capacity
4 L | 135.26 oz
Technical Specs Ink Supply Pressure Factory Set For
15 psi | 1 bar
Technical Specs Line Of Print
1 to 2
Technical Specs Maximum Image Size
2-1/2 in | 63.5 mm
Technical Specs Maximum Power
90 W
Technical Specs Maximum Print Distance
1/2 in | 12.7 mm
Technical Specs Maximum Speed
780 ft/min | 3.96 m/s
Technical Specs Minimum Character Size
1/4 in | 6.35 mm
Technical Specs Non Condensing Relative Humidity Rh
10 to 85 %
Technical Specs Note For Utilities Required
Clean, dry air-an air filter/regulator kit is available as an option
Technical Specs Operating Temperature
41 to 113 ºF | 5 to 45 ºC
Technical Specs Output Current
3.75 A
Technical Specs Printhead Voltage
16 V
