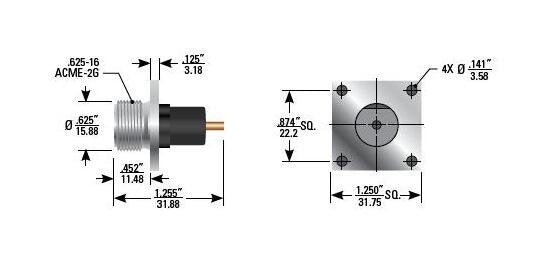

Maxxum Series 25 kVDC Flange Mount Plastic Receptacle
Maxxum Series 25 kVDC Flange Mount Plastic Receptacle
SKU:HIG-edff9d
High-power 25 kVDC flange-mounted plastic receptacle for reliable TWT collector interconnects and E-beam inspection equipment.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Maxxum Series 25 kVDC Flange Mount Plastic Receptacle
$129.99
Quantity: 1
Claim Your Seller Account
Maxxum Series 25 kVDC Flange Mount Plastic Receptacle
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Maxxum Series 25 kVDC Flange Mounted Plastic Receptacle is a robust connector designed for high-power applications such as TWT collector interconnects and E-beam inspection equipment. Constructed with stainless steel components and featuring a hermetic feedthrough design, this receptacle ensures low partial discharge. The FEP cable with a double braid provides secure and reliable connections. With a current rating of 5A and operating temperature range of -55 to 125 °C, this receptacle meets stringent industry standards for performance and durability.
Product Specifications
Body Properties Coupling Nut Material
CRES | Stainless Steel
Contact Properties Contact Diameter
0.062
Contact Properties Contact Material
Brass/Au
Contact Properties Contact Size
16
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Braid Termination
Solder
Specifications Coupling Style
Threaded
Specifications Current Rating Rms
5 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic or Ceramic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates all Maxxum series plug cable assemblies.
Specifications Mounting Notes
Requires clearance for .500â-20 UNF thread
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
Maxxum
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
130% of rated voltage at 70,000 ft. simulated altitude
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
FEP
Specifications Wire Type
Shielded
