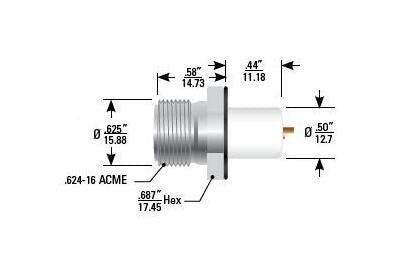

Maxxum Series 25 kVDC Single Pin Hermetic Ceramic-to-Metal Brazed Receptacle
Maxxum Series 25 kVDC Single Pin Hermetic Ceramic-to-Metal Brazed Receptacle
SKU:HIG-64999e
Maxxum Series 25 kVDC Single Pin Receptacle with Solder Flange, hermetic feedthrough, and stainless steel construction for reliable high-power connections.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Maxxum Series 25 kVDC Single Pin Hermetic Ceramic-to-Metal Brazed Receptacle
$59.99
Quantity: 1
Claim Your Seller Account
Maxxum Series 25 kVDC Single Pin Hermetic Ceramic-to-Metal Brazed Receptacle
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Maxxum Series 25 kVDC Single Pin Hermetic Ceramic-to-Metal Brazed Receptacle with Solder Flange is designed for high power applications, ensuring low partial discharge and hermetic feedthrough. Featuring stainless steel construction, a silicone rubber interface seal, and a threaded coupling nut, it guarantees secure connections and reliable performance. With a maximum leak rate of 1x10-8 cc/sec and RoHS compliance, this connector meets stringent industry standards for high voltage applications.
Product Specifications
Contact Properties Contact Diameter
0.062
Contact Properties Contact Size
16
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating Rms
5 A
Specifications Export Classification
TBD
Specifications Insulator Material
Ceramic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates all Maxxum series plug cable assemblies.
Specifications Maximum Leak Rate Helium
1x10-8 cc/sec
Specifications Mounting Notes
Solder Flange
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Solder Flange
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
Maxxum
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
130% of rated voltage at 70,000 ft. simulated altitude
Specifications Voltage Rating
25 kVDC
