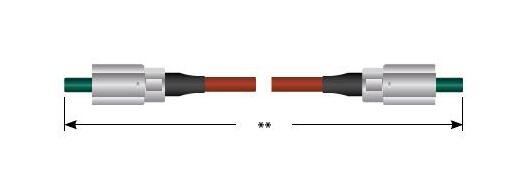

Maxxum Series Double-ended Shielded Cable Assembly - 25 kVDC
Maxxum Series Double-ended Shielded Cable Assembly - 25 kVDC
SKU:HIG-462383
High-power shielded cable assembly with stainless steel construction. Ideal for TWT collector interconnects and E-beam inspection equipment.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Maxxum Series Double-ended Shielded Cable Assembly - 25 kVDC
$89.99
Quantity: 1
Claim Your Seller Account
Maxxum Series Double-ended Shielded Cable Assembly - 25 kVDC
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Maxxum Series Double-ended Shielded Cable Assembly is expertly designed for high power applications, featuring robust stainless steel construction for durability. Ideal for TWT collector interconnects and E-beam inspection equipment, it boasts a low partial discharge design and hermetic feedthrough. With FEP cable and double braid for superior performance, this assembly ensures reliability in demanding environments. Mates seamlessly with all Maxxum series threaded receptacles, offering a secure and high-performance connection.
Product Specifications
Body Properties Coupling Nut Material
CRES | Stainless Steel
Contact Properties Contact Material
BeCu/Au with CRES Hood
Contact Properties Contact Size
16
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Braid Termination
Solder
Specifications Coupling Style
Threaded
Specifications Current Rating Rms
5 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates all Maxxum series threaded receptacles.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
Maxxum
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
130% of rated voltage at 70,000 ft. simulated altitude
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
0.150 in. diameter FEP with double shield. | FEP
Specifications Wire Type
Shielded
