MBS/L Air Diaphragm Chuck - 152mm Chuck Size
$699.99
Quantity: 1
Claim Your Seller Account
MBS/L Air Diaphragm Chuck - 152mm Chuck Size
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

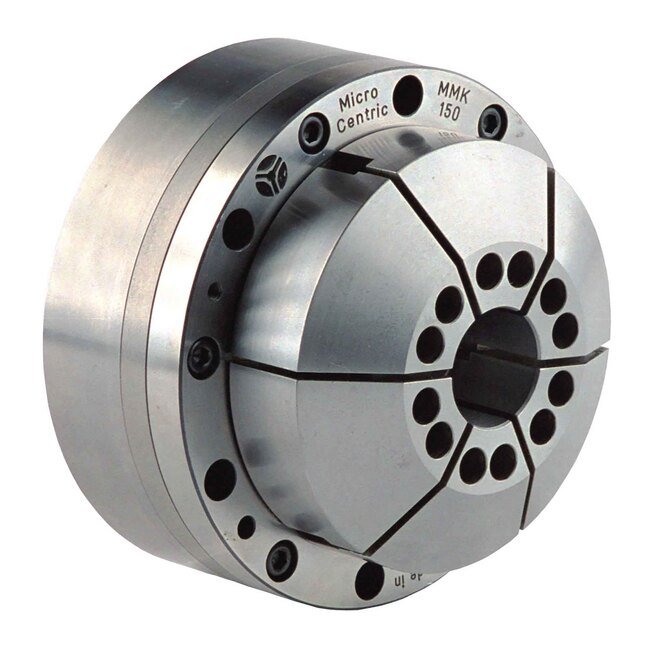

The MBS/L Air Operated Diaphragm Chuck is a self-contained chuck with a built-in air cylinder for increased efficiency. Designed for OD and ID chucking in cylindrical grinding, turning, and hard turning applications, it offers high concentricity and roundness. With a chuck size of 152mm and a repeating accuracy of .0001 inches, this chuck provides precise and reliable performance. The chuck features 6 jaws with a jaw stroke of 1.5mm, capable of delivering a maximum jaw force of 6,090 lbf. With a max air pressure of 100 psi and a maximum speed of 6,000 rpm, this chuck is ideal for fragile parts and high-speed applications.
Product Specifications

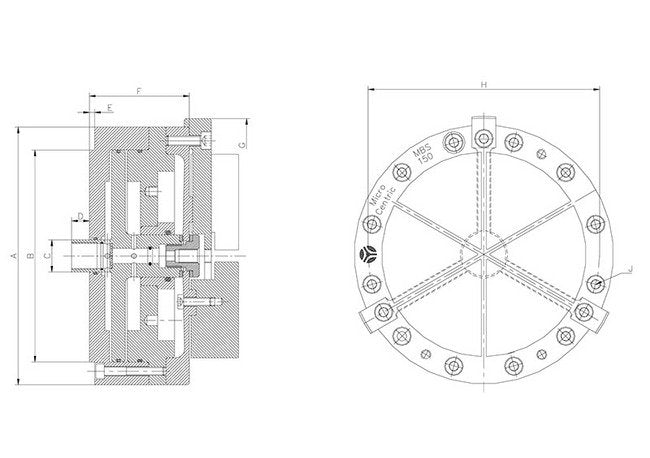

Specifications A Dimension
5.98 in | 152 mm
Specifications B Dimension
4.920 in | 125 mm
Specifications Chuck Size
5.98 in | 152 mm
Specifications C Dimension
.750 in | 19 mm
Specifications D Dimension
.46 in | 11.7 mm
Specifications E Dimension
.120 in | 3 mm
Specifications F Dimension
2.19 in | 55.6 mm
Specifications G Dimension
6.38 in | 162.1 mm
Specifications H Dimension
5.350 in | 135.9 mm
Specifications Item No
41 150 001
Specifications Jaw Stroke
.060 in | 1.5 mm
Specifications J Dimension
M6
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
6,090 lbf | 2,768 kgf
Specifications Max Rpm
6,000
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
14.3 lb | 6.5 kg
Standard Equipment Available Standard Equipment
ASS-150, AAS Part Stop Spider | MMR-150-6, MMR Diaphragms | SMR-150-25S, SMR Blank Top Jaws | SMR-150-38S, SMR Blank Top Jaws | SMR-150-50S, SMR Blank Top Jaws | SMR-150-75S, SMR Blank Top Jaws
