MBS/L Air Diaphragm Chuck - Precision OD & ID Chucking
$1,899.99
Quantity: 1
Claim Your Seller Account
MBS/L Air Diaphragm Chuck - Precision OD & ID Chucking
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MBS/L Air Operated Diaphragm Chuck is a self-contained chuck designed with a built-in air cylinder for efficient operation. It features OD and ID chucking capabilities, making it ideal for cylindrical grinding, turning, and hard turning tasks. With high concentricity and repeatable accuracy of .0001 in | .0025 mm, this chuck is perfect for fragile parts and high-speed applications. With a chuck size of 8.03 in | 204 mm and a max rpm of 4,500, it offers versatility and precision for various workpieces.
Product Specifications

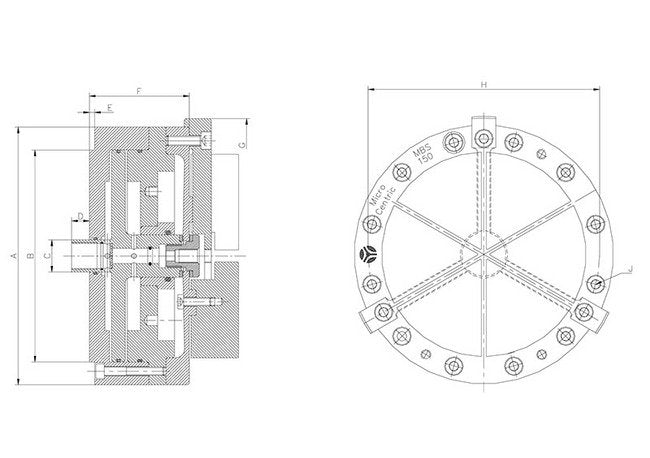

Specifications A Dimension
8.03 in | 204 mm
Specifications B Dimension
6.600 in | 167.6 mm
Specifications Chuck Size
8.03 in | 204 mm
Specifications C Dimension
1.187 in | 30 mm
Specifications D Dimension
.43 in | 10.9 mm
Specifications E Dimension
.125 in | 3.2 mm
Specifications F Dimension
2.48 in | 63 mm
Specifications G Dimension
8.46 in | 214.1 mm
Specifications H Dimension
7.200 in | 182.9 mm
Specifications Item No
41 200 001
Specifications Jaw Stroke
.060 in | 1.5 mm
Specifications J Dimension
M10
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
10,950 lbf | 4,977 kgf
Specifications Max Rpm
4,500
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
29.1 lb | 13.2 kg
Standard Equipment Available Standard Equipment
ASS-200, AAS Part Stop Spider | MMR-200-6, MMR Diaphragms | SMR-200-38S, SMR Blank Top Jaws | SMR-200-50S, SMR Blank Top Jaws | SMR-200-75S, SMR Blank Top Jaws
