MBS/L Air Operated Diaphragm Chuck

MBS/L Air Operated Diaphragm Chuck

SKU:DIA-840ef9

Precision chuck for cylindrical grinding and turning applications, featuring a self-contained design and high concentricity.

Regular price $2,899.99
Regular price Sale price $2,899.99
Sale

Initiate Order

MBS/L Air Operated Diaphragm Chuck

MBS/L Air Operated Diaphragm Chuck

$2,899.99

Quantity: 1

Claim Your Seller Account

MBS/L Air Operated Diaphragm Chuck

MBS/L Air Operated Diaphragm Chuck

$2,899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MBS/L Air Operated Diaphragm Chuck features a self-contained design with a built-in air cylinder, supplied by a multi-passage air tube assembly. Ideal for OD and ID chucking in cylindrical grinding and turning applications requiring high concentricity and close roundness. With a Chuck Size of 11.57 inches and a maximum RPM of 3,000, this chuck provides precise chucking for fragile parts and high-speed applications.

Product Specifications

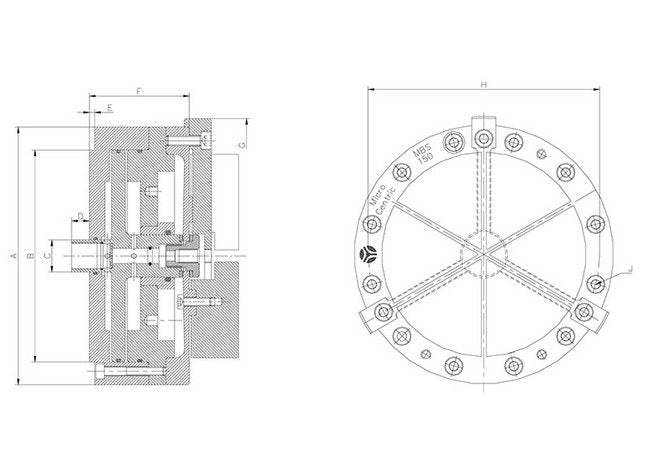

Specifications A Dimension
11.57 in | 293.9 mm
Specifications B Dimension
9.758 in | 247.8 mm
Specifications Chuck Size
11.57 in | 294 mm
Specifications C Dimension
1.187 in | 30 mm
Specifications E Dimension
.185 in | 4.7 mm
Specifications F Dimension
3.66 in | 96 mm
Specifications G Dimension
12.05 in | 306 mm
Specifications H Dimension
10.500 in | 266.7 mm
Specifications Item No
41 300 001
Specifications Jaw Stroke
.080 in | 2 mm
Specifications J Dimension
M10
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
27,470 lbf | 12,486 kgf
Specifications Max Rpm
3,000
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
96.1 lb | 43.7 kg
Standard Equipment Available Standard Equipment
ASS-300, AAS Part Stop Spider | MMR-300-6, MMR Diaphragms | SMR-300-38S, SMR Blank Top Jaws | SMR-300-50S, SMR Blank Top Jaws | SMR-300-75S, SMR Blank Top Jaws
