MBS/L Air Operated Diaphragm Chuck, 10''
$2,499.99
Quantity: 1
Claim Your Seller Account
MBS/L Air Operated Diaphragm Chuck, 10''
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

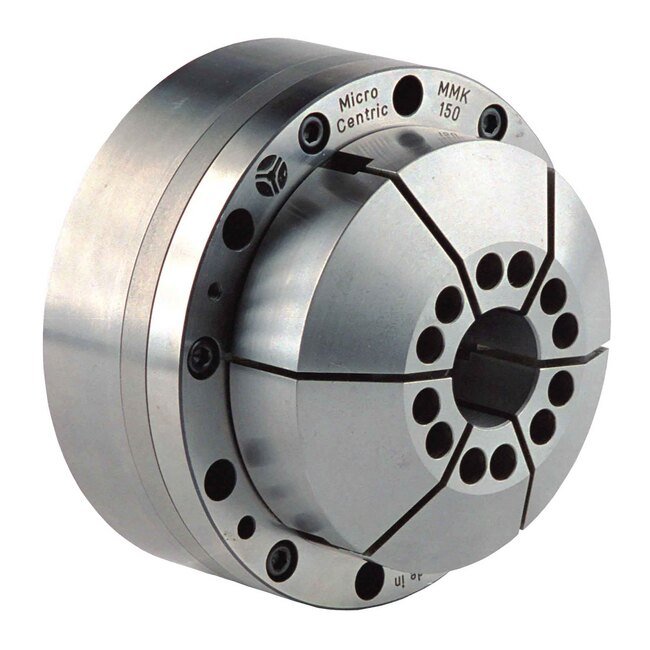

The MBS/L Air Operated Diaphragm Chuck features a self-contained design with an integrated air cylinder for efficient chucking operations. Equipped with multi-passage air tube assembly and rotary coupling, it ensures seamless air supply to enable OD and ID chucking for cylindrical grinding, turning, and hard turning applications. With exceptional repeating accuracy of .0001 in | .0025 mm, 6 jaws, and a maximum air pressure of 100 psi | 7.1 kg/cm², this chuck is ideal for achieving high concentricity, close roundness, and handling fragile parts with precision at high spindle speeds.
Product Specifications

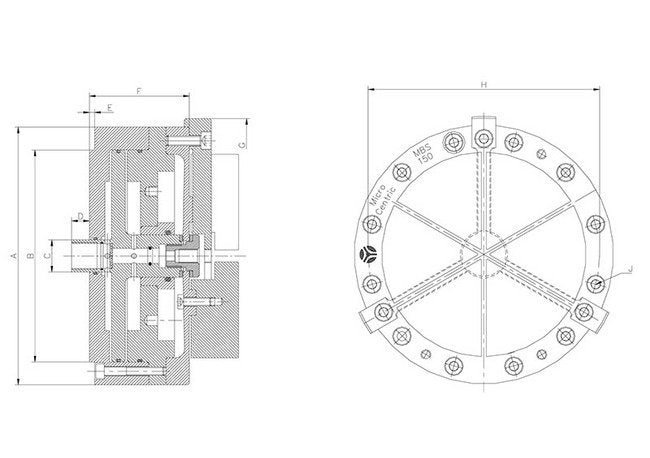

Specifications A Dimension
10.00 in | 254 mm
Specifications B Dimension
8.500 in | 215.9 mm
Specifications Chuck Size
10.00 in | 254 mm
Specifications C Dimension
1.187 in | 30 mm
Specifications D Dimension
.28 in | 7.1 mm
Specifications E Dimension
.185 in | 4.7 mm
Specifications F Dimension
3.54 in | 90 mm
Specifications G Dimension
9.21 in | 234 mm
Specifications H Dimension
9.200 in | 233.7 mm
Specifications Item No
41 250 004
Specifications Jaw Stroke
.080 in | 2 mm
Specifications J Dimension
M10
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
17,090 lbf | 7,768 kgf
Specifications Max Rpm
3,500
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
64.5 lb | 29.3 kg
Standard Equipment Available Standard Equipment
ASS-250, AAS Part Stop Spider | MMR-250-6, MMR Diaphragms | SMR-250-38S, SMR Blank Top Jaws | SMR-250-50S, SMR Blank Top Jaws | SMR-250-75S, SMR Blank Top Jaws
