The MBS/L Air Operated Diaphragm Chuck is engineered with a self-contained design and a built-in air cylinder for seamless chuck operation. With OD and ID chucking capabilities, this chuck is ideal for cylindrical grinding, turning, and hard turning applications. It offers high concentricity and close roundness, making it perfect for delicate workpieces and high-speed machining. With a chuck size of 3.19 inches, repeating accuracy of .0001 inches, and a max rpm of 8,000, this chuck ensures precise and efficient machining operations.
Product Specifications

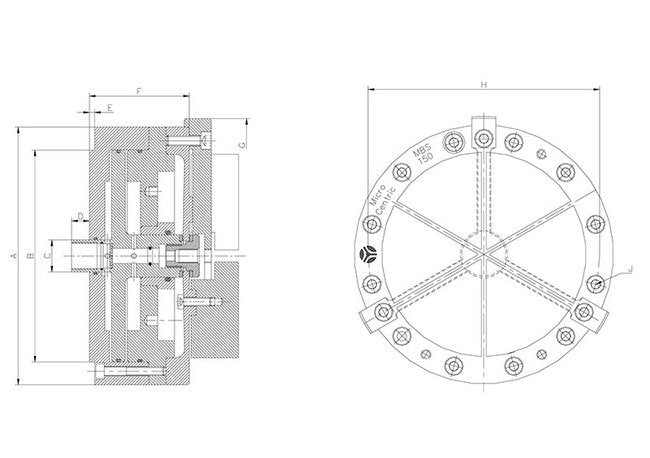

Specifications A Dimension
3.19 in | 81 mm
Specifications B Dimension
2.000 in | 50.8 mm
Specifications Chuck Size
3.19 in | 80 mm
Specifications C Dimension
.750 in | 19 mm
Specifications D Dimension
.51 in | 13 mm
Specifications E Dimension
.060 in | 1.5 mm
Specifications F Dimension
1.77 in | 45 mm
Specifications G Dimension
3.50 in | 88.9 mm
Specifications H Dimension
2.750 in | 69.9 mm
Specifications Item No
41 080 001
Specifications Jaw Stroke
.060 in | 1.5 mm
Specifications J Dimension
M5
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
510 lbf | 232 kgf
Specifications Max Rpm
8,000
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
3.3 lb | 1.5 kg
Standard Equipment Available Standard Equipment
ASS-80, AAS Part Stop Spider | MMR-80-6, MMR Diaphragms | SMR-80-25S, SMR Blank Top Jaws | SMR-80-38S, SMR Blank Top Jaws
