MBS/L Air Operated Diaphragm Chucks - 5.00 in Chuck Size
MBS/L Air Operated Diaphragm Chucks - 5.00 in Chuck Size
SKU:DIA-27e661
Enhance precision and efficiency with the MBS/L Air Operated Diaphragm Chucks - 5.00 in size. Perfect for high-speed applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
MBS/L Air Operated Diaphragm Chucks - 5.00 in Chuck Size
$799.99
Quantity: 1
Claim Your Seller Account
MBS/L Air Operated Diaphragm Chucks - 5.00 in Chuck Size
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MBS/L Air Operated Diaphragm Chucks feature a self-contained design with a built-in air cylinder, supplied by a multi-passage air tube assembly with a rotary coupling. With a chuck size of 5.00 inches, these chucks are ideal for OD and ID chucking in cylindrical grinding, turning, and hard turning applications. Offering high concentricity, close roundness, and compatibility with fragile parts, these chucks can handle high spindle speeds while ensuring a repeating accuracy of .0001 inches.
Product Specifications

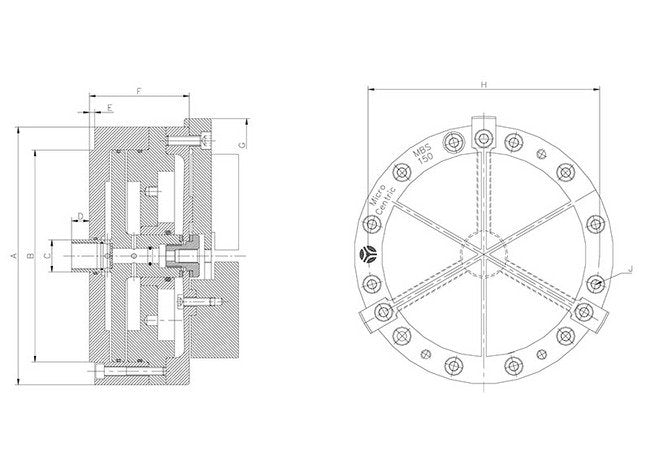

Specifications A Dimension
5.00 in | 127 mm
Specifications B Dimension
3.937 in | 100 mm
Specifications Chuck Size
5.00 in | 127 mm
Specifications C Dimension
.750 in | 19 mm
Specifications D Dimension
.34 in | 8.6 mm
Specifications E Dimension
.120 in | 3 mm
Specifications F Dimension
2.28 in | 57.9 mm
Specifications G Dimension
5.35 in | 135.9 mm
Specifications H Dimension
43409 in | 112 mm
Specifications Item No
41 125 011
Specifications Jaw Stroke
.060 in | 1.5 mm
Specifications J Dimension
M6
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
3,640 lbf | 1,655 kgf
Specifications Max Rpm
6,500
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
10.4 lb | 4.7 kg
Standard Equipment Available Standard Equipment
ASS-125, AAS Part Stop Spider | MMR-125-6, MMR Diaphragms | SMR-125-25S, SMR Blank Top Jaws | SMR-125-38S, SMR Blank Top Jaws | SMR-125-50S, SMR Blank Top Jaws
