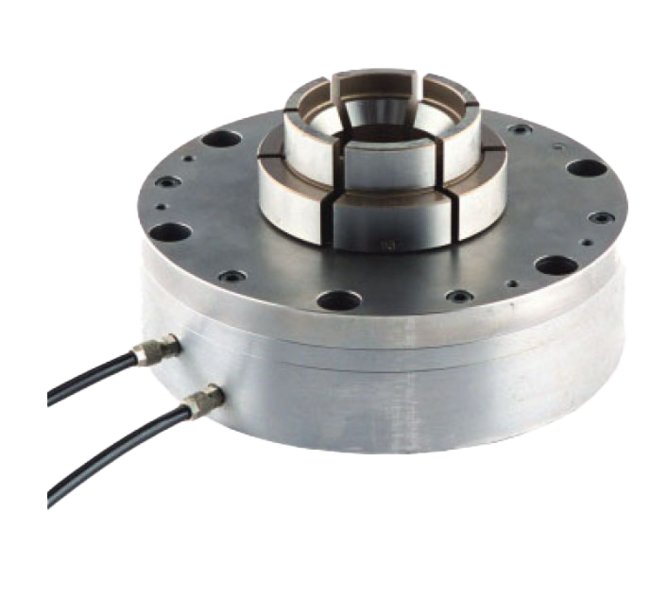

The MBS/N Stationary Diaphragm Chuck is a self-contained design with a built-in air cylinder, ideal for OD and ID chucking in milling, drilling, or inspection applications. Featuring exceptional repeating accuracy of .0001 in | .0025 mm, six jaws for superior clamping force up to 1,560 lbf | 709 kgf, and a maximum air pressure of 100 psi | 7.1 kg/cm², this chuck ensures high concentricity and workpiece roundness. The diaphragm's spring characteristic allows for clamping without continuous air supply, making it perfect for pallet and tombstone setups.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

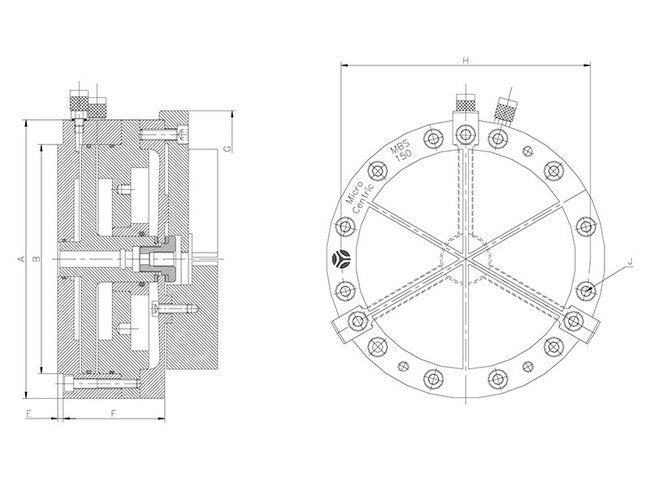

Specifications A Dimension
4.02 in | 102.1 mm
Specifications B Dimension
3.249 in | 82.5 mm
Specifications Chuck Size
4.02 in | 102 mm
Specifications E Dimension
.060 in | 1.5 mm
Specifications F Dimension
2.21 in | 56.1 mm
Specifications G Dimension
4.33 in | 110 mm
Specifications H Dimension
3.500 in | 88.9 mm
Specifications Item No
41 100 017
Specifications Jaw Stroke
.060 in | 1.5 mm
Specifications J Dimension
M5
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
1,560 lbf | 709 kgf
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
6.5 lb | 3.0 kg
Standard Equipment Available Standard Equipment
ASS-100, AAS Part Stop Spider | MMR-100-6, MMR Diaphragms | SMR-100-25S, SMR Blank Top Jaws | SMR-100-38S, SMR Blank Top Jaws | SMR-100-50S, SMR Blank Top Jaws
