MBS/N Stationary Diaphragm Chucks for High Precision Applications
MBS/N Stationary Diaphragm Chucks for High Precision Applications
SKU:DIA-712167
Achieve unmatched precision and reliability with MBS/N Stationary Diaphragm Chucks, perfect for non-rotating applications!
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MBS/N Stationary Diaphragm Chucks for High Precision Applications
$399.99
Quantity: 1
Claim Your Seller Account
MBS/N Stationary Diaphragm Chucks for High Precision Applications
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

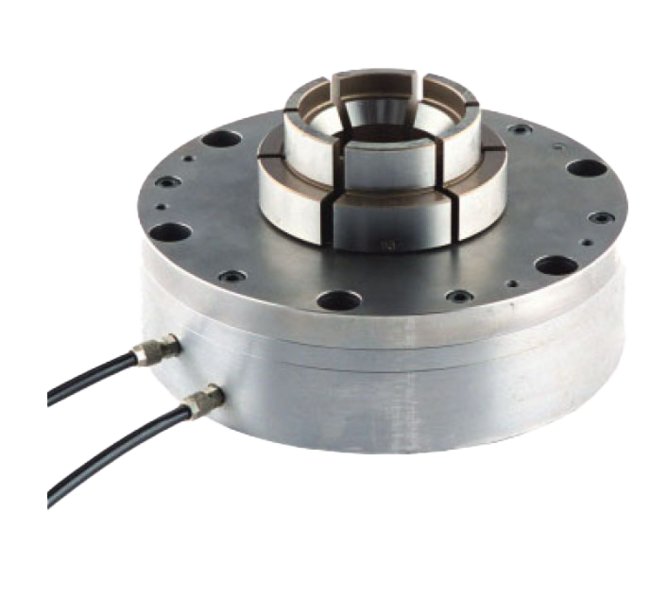

The MBS/N Stationary Diaphragm Chucks are expertly designed with a self-contained build featuring a built-in air cylinder. Ideal for OD and ID chucking in milling, drilling, and inspection tasks, these chucks ensure exceptional concentricity and workpiece roundness. With six jaws offering a jaw stroke of .063 in | 1.5 mm and a high max. jaw force of 510 lbf | 232 kgf, these chucks deliver precise and reliable clamping without the need for continuous air supply, making them perfect for pallet and tombstone applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

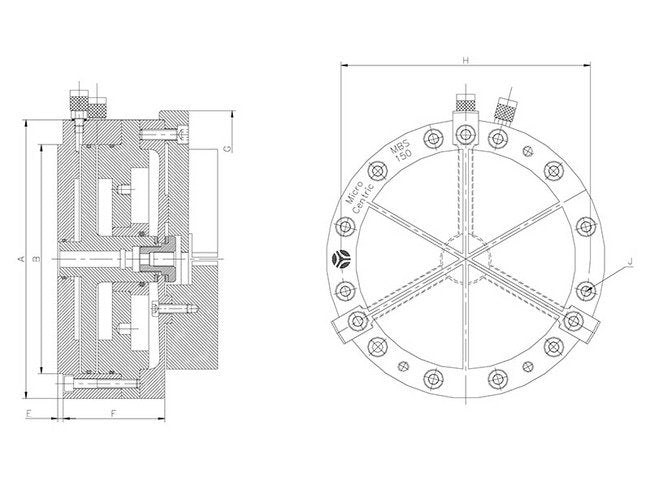

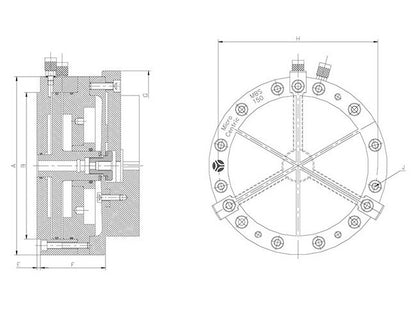

Specifications A Dimension
3.19 in | 81 mm
Specifications B Dimension
2.000 in | 50.8 mm
Specifications Chuck Size
3.19 in | 80 mm
Specifications E Dimension
.060 in | 1.5 mm
Specifications F Dimension
1.77 in | 44.9 mm
Specifications G Dimension
3.50 in | 88.9 mm
Specifications H Dimension
2.750 in | 69.8 mm
Specifications Item No
41 080 020
Specifications Jaw Stroke
.063 in | 1.5 mm
Specifications J Dimension
M5
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
510 lbf | 232 kgf
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
3.3 lb | 1.5 kg
Standard Equipment Available Standard Equipment
ASS-80, AAS Part Stop Spider | MMR-80-6, MMR Diaphragms | SMR-80-25S, SMR Blank Top Jaws | SMR-80-38S, SMR Blank Top Jaws
