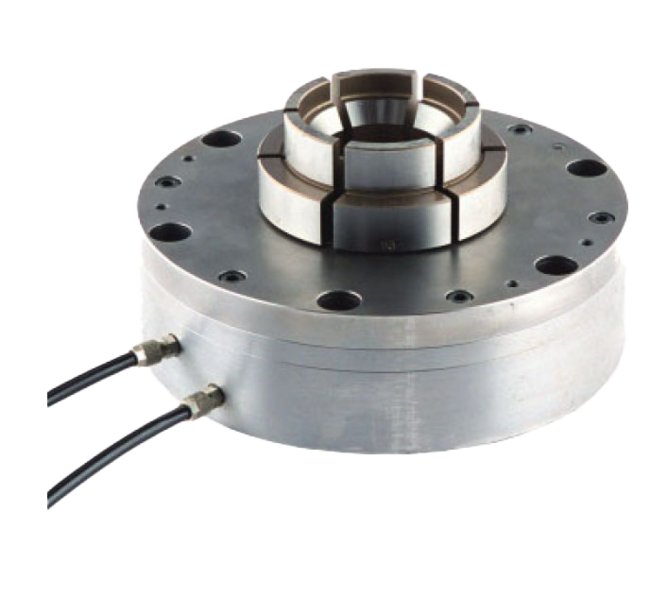

The MBS/N Stationary Diaphragm Chucks are engineered for precision OD and ID chucking applications in milling, drilling, and inspection processes. Featuring a built-in air cylinder design with side air ports, these chucks offer high concentricity and workpiece roundness. The diaphragm's spring characteristic enables clamping without continuous air supply, ideal for pallet and tombstone applications. With a chuck size of 12.00 inches and max jaw force of 27,470 lbf, these chucks ensure repeatable accuracy of .0001 inches, meeting the stringent demands of non-rotating machining operations.
Product Specifications

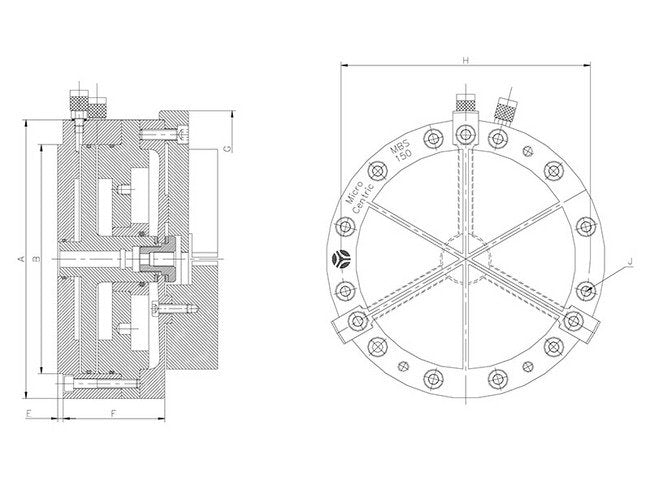

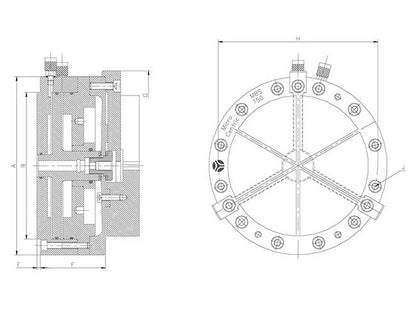

Specifications A Dimension
11.57 in | 293.9 mm
Specifications B Dimension
9.758 in | 247.8 mm
Specifications Chuck Size
12.00 in | 294 mm
Specifications E Dimension
.185 in | 4.7 mm
Specifications F Dimension
3.66 in | 93 mm
Specifications G Dimension
12.05 in | 306 mm
Specifications H Dimension
10.500 in | 266.7 mm
Specifications Item No
41 300 019
Specifications Jaw Stroke
.126 in | 2 mm
Specifications J Dimension
M10
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
27,470 lbf | 12,486 kgf
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
96.1 lb | 46.7 kg
Standard Equipment Available Standard Equipment
ASS-300, AAS Part Stop Spider | MMR-300-6, MMR Diaphragms | SMR-300-38S, SMR Blank Top Jaws | SMR-300-50S, SMR Blank Top Jaws | SMR-300-75S, SMR Blank Top Jaws
