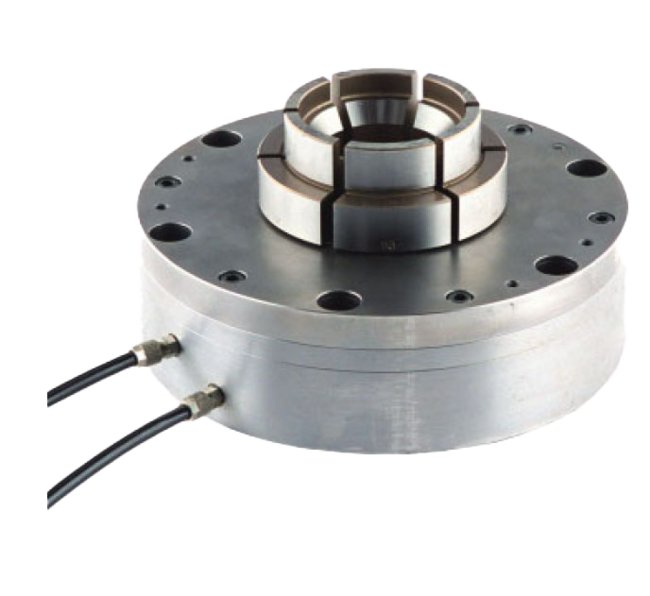

The MBS/N Stationary Diaphragm Chucks offer a self-contained design with a built-in air cylinder, ideal for OD and ID chucking in milling, drilling, inspection, and non-rotating applications. With a repeating accuracy of .0001 in | .0025 mm, 6 jaws for secure clamping, and a max jaw force of 17,090 lbf | 7,768 kgf, these chucks ensure high concentricity and workpiece roundness. Designed for pallet and tombstone applications, they operate at a max air pressure of 100 psi | 7.1 kg/cm², providing reliability and efficiency.
Product Specifications

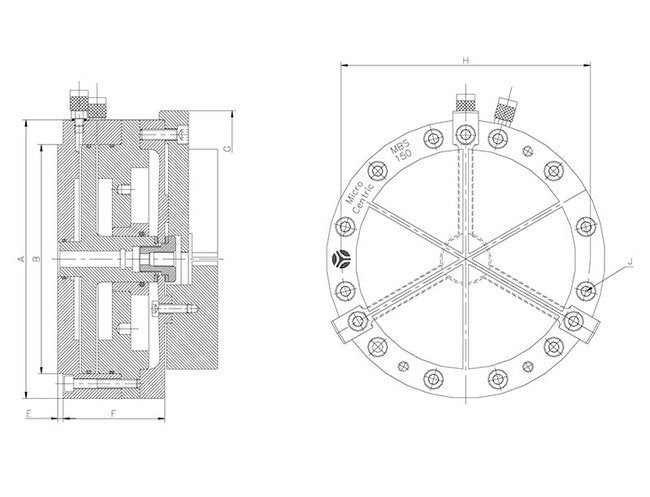

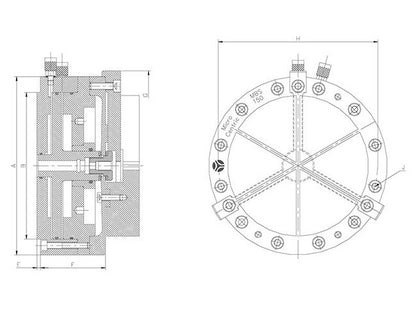

Specifications A Dimension
10.00 in | 254 mm
Specifications B Dimension
8.500 in | 215.9 mm
Specifications Chuck Size
10.00 in | 254 mm
Specifications E Dimension
.185 in | 4.7 mm
Specifications F Dimension
3.54 in | 90 mm
Specifications G Dimension
9.21 in | 234 mm
Specifications H Dimension
9.200 in | 233.7 mm
Specifications Item No
41 250 023
Specifications Jaw Stroke
.126 in | 2 mm
Specifications J Dimension
M10
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
17,090 lbf | 7,768 kgf
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
34.5 lb | 29.3 kg
Standard Equipment Available Standard Equipment
ASS-250, AAS Part Stop Spider | MMR-250-6, MMR Diaphragms | SMR-250-38S, SMR Blank Top Jaws | SMR-250-50S, SMR Blank Top Jaws | SMR-250-75S, SMR Blank Top Jaws
