MBS/N Stationary Diaphragm Chucks - Precision Chucking Solution

Name: MBS/N Stationary Diaphragm Chucks - Precision Chucking Solution
Brand: MicroCentric Corp.
SKU: DIA-d96f03
Price: 799.99 USD
Availability: OutOfStock

SKU:DIA-d96f03

Precision MBS/N Stationary Diaphragm Chucks for high-concentricity chucking needs.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

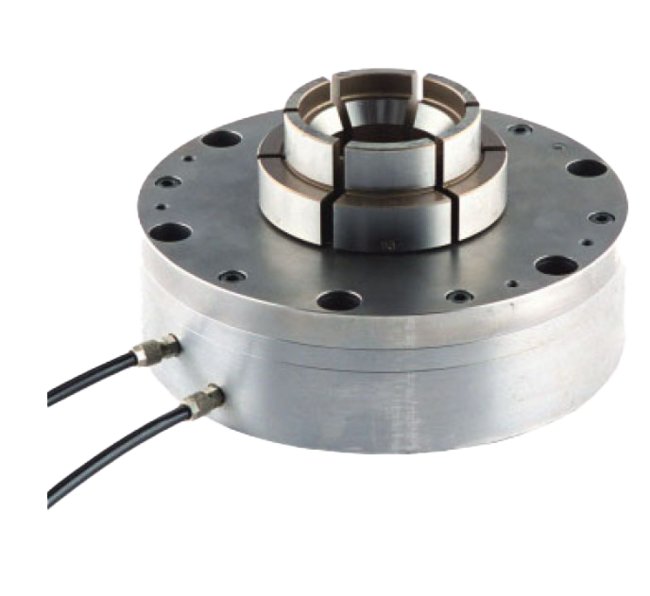

The MBS/N Stationary Diaphragm Chucks offer a self-contained design with a built-in air cylinder, ideal for OD and ID chucking in milling, drilling, and inspection applications. With a chuck size of 5.98 inches and a repeating accuracy of .0001 inches, these chucks ensure high concentricity and workpiece roundness. Featuring six jaws with a max jaw force of 6,090 lbf, these chucks provide superior clamping without continuous air supply, perfect for pallet and tombstone applications.

Product Specifications

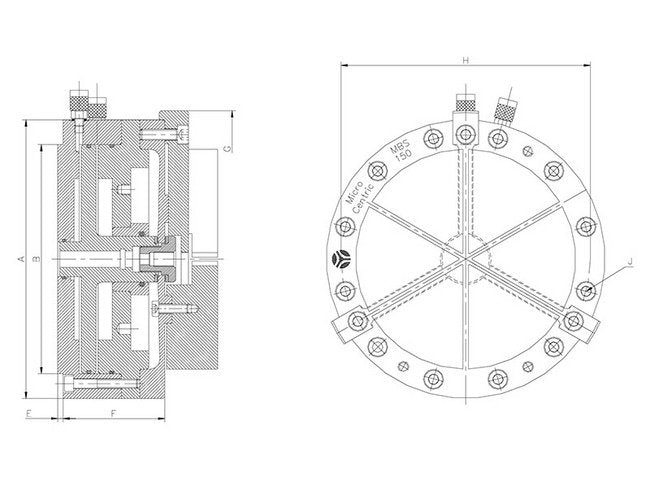

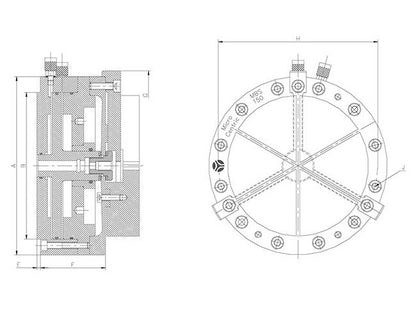

Specifications A Dimension

5.98 in | 182 mm

Specifications B Dimension

4.920 in | 125 mm

Specifications Chuck Size

5.98 in | 152 mm

Specifications E Dimension

.120 in | 3.0 mm

Specifications F Dimension

2.19 in | 55.6 mm

Specifications G Dimension

6.38 in | 163.1 mm

Specifications H Dimension

5.350 in | 135.9 mm

Specifications Item No

40 150 021

Specifications Jaw Stroke

.060 in | 1.5 mm

Specifications J Dimension

Specifications Max Air Pressure

100 psi | 7.1 kg/cmÂ²

Specifications Max Jaw Force

6,090 lbf | 2,768 kgf

Specifications No Of Jaws

Specifications Ordering Information

MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.

Specifications Repeating Accuracy

.0001 in | .0025 mm

Specifications Weight

14.3 lb | 6.5 kg

Standard Equipment Available Standard Equipment
