MBS/N Stationary Diaphragm Chucks - Precision Chucking Solution

MBS/N Stationary Diaphragm Chucks - Precision Chucking Solution

SKU:DIA-8cda33

Achieve precision results with MBS/N Stationary Diaphragm Chucks - perfect for OD & ID chucking applications, ensuring high concentricity & workpiece roundness.

Regular price $899.99
Regular price Sale price $899.99
Sale

Initiate Order

MBS/N Stationary Diaphragm Chucks - Precision Chucking Solution

MBS/N Stationary Diaphragm Chucks - Precision Chucking Solution

$899.99

Quantity: 1

Claim Your Seller Account

MBS/N Stationary Diaphragm Chucks - Precision Chucking Solution

MBS/N Stationary Diaphragm Chucks - Precision Chucking Solution

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

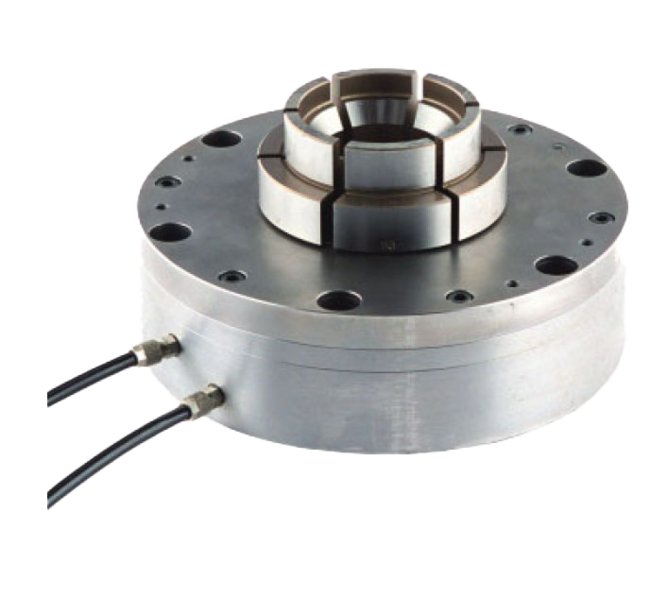

The MBS/N Stationary Diaphragm Chucks are expertly designed for OD and ID chucking applications, delivering exceptional concentricity and workpiece roundness. Featuring a self-contained design with a built-in air cylinder and six jaws, these chucks ensure high repeating accuracy of .0001 in | .0025 mm. With a max jaw force of 3,640 lbf | 1,655 kgf and max air pressure of 100 psi | 7.1 kg/cm², they offer versatility for milling, drilling, and inspection tasks, ideal for pallet and tombstone applications. Experience reliable clamping without continuous air supply, enhancing efficiency and productivity in industrial settings.

Product Specifications

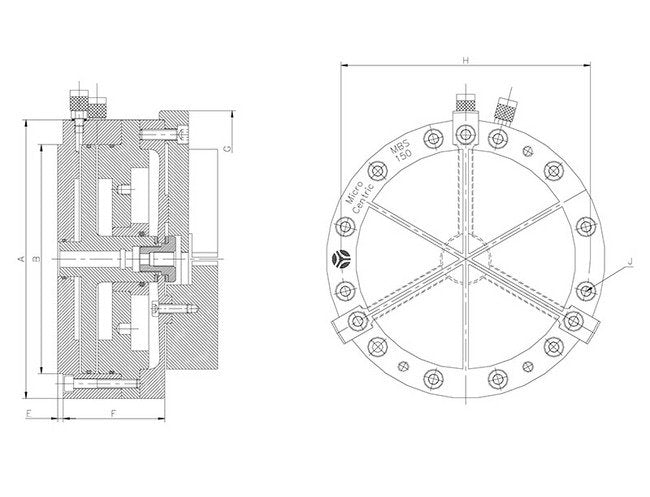

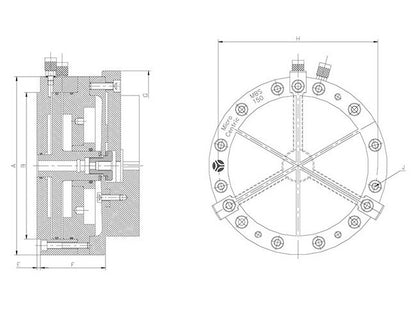

Specifications A Dimension
5.00 in | 127 mm
Specifications B Dimension
3.937 in | 100 mm
Specifications Chuck Size
5.00 in | 127 mm
Specifications E Dimension
.120 in | 3.0 mm
Specifications F Dimension
2.28 in | 57.9 mm
Specifications G Dimension
5.35 in | 135.9 mm
Specifications H Dimension
4.409 in | 112 mm
Specifications Item No
41 125 020
Specifications Jaw Stroke
.060 in | 1.5 mm
Specifications J Dimension
M6
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
3,640 lbf | 1,655 kgf
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
10.4 lb | 4.7 kg
Standard Equipment Available Standard Equipment
ASS-125, AAS Part Stop Spider | MMR-125-6, MMR Diaphragms | SMR-125-25S, SMR Blank Top Jaws | SMR-125-38S, SMR Blank Top Jaws | SMR-125-50S, SMR Blank Top Jaws
