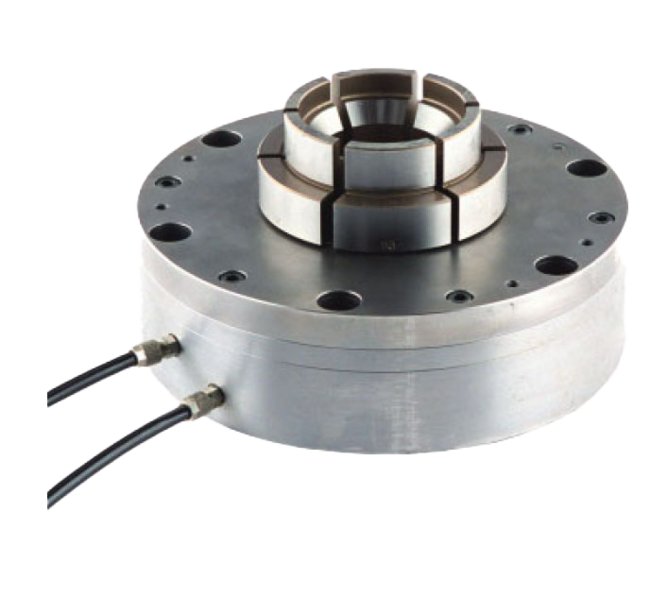

The MBS/N Stationary Diaphragm Chucks are engineered for exceptional OD and ID chucking precision in milling, drilling, and inspection applications. With a self-contained design featuring a built-in air cylinder and six jaws offering a repeating accuracy of .0001 in | .0025 mm, these chucks ensure high concentricity and workpiece roundness. The diaphragm's spring characteristic allows for reliable clamping without continuous air supply, ideal for pallet and tombstone setups. Maximize efficiency and accuracy with a chuck size of 8.03 in | 204 mm, capable of delivering a jaw force of 10,950 lbf | 4,977 kgf under a maximum air pressure of 100 psi | 7.1 kg/cm². Improve your machining operations with the MBS/N Stationary Diaphragm Chucks.
Product Specifications

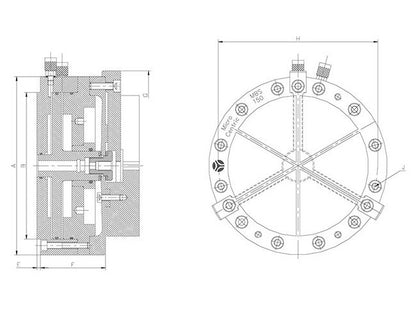

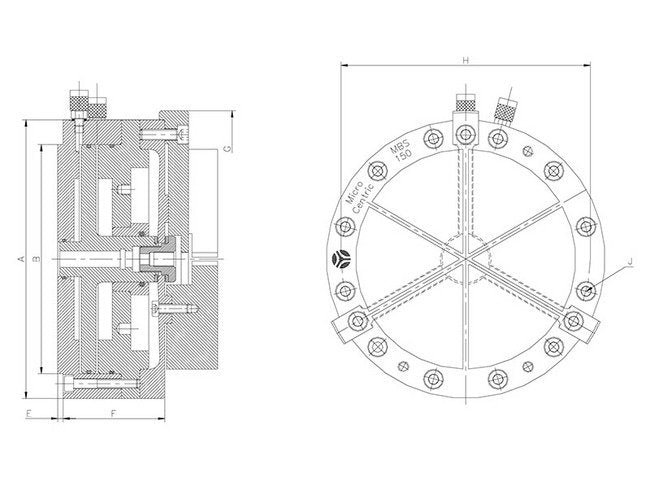

Specifications A Dimension
8.03 in | 204 mm
Specifications B Dimension
6.600 in | 167.6 mm
Specifications Chuck Size
8.03 in | 204 mm
Specifications E Dimension
.125 in | 3.0 mm
Specifications F Dimension
2.48 in | 63 mm
Specifications G Dimension
8.43 in | 214.1 mm
Specifications H Dimension
7.200 in | 182.9 mm
Specifications Item No
40 200 025
Specifications Jaw Stroke
.126 in | 2 mm
Specifications J Dimension
M10
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
10,950 lbf | 4,977 kgf
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
29.1 lb | 13.2 kg
Standard Equipment Available Standard Equipment
ASS-200, AAS Part Stop Spider | MMR-200-6, MMR Diaphragms | SMR-200-38S, SMR Blank Top Jaws | SMR-200-50S, SMR Blank Top Jaws | SMR-200-75S, SMR Blank Top Jaws
